ELECTRONIC COMPONENTS
Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

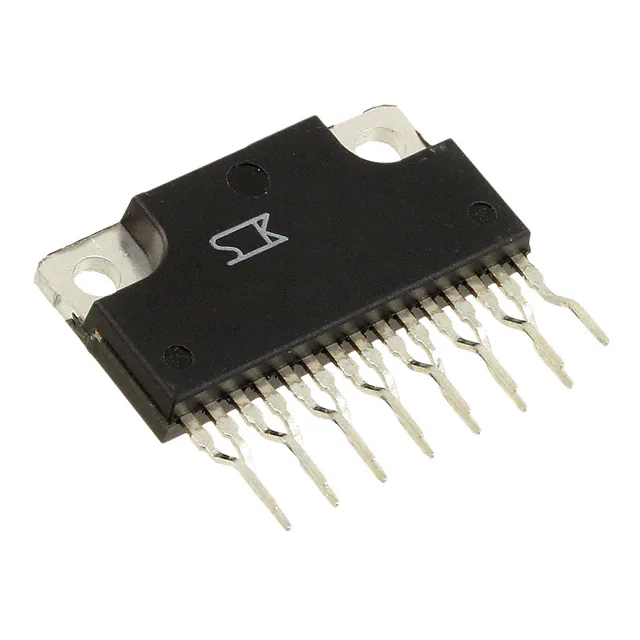

SMA4036TRANS 6 NPN DARL 120V 2A 15-SIP |
5,011 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | 6 NPN Darlington | 2A | 120V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
STA403ATRANS 4NPN DARL 100V 4A 10-SIP |
2,273 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 4A | 100V | 100V @ 10mA | 100µA (ICBO) | 1000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA4036TRANS 120V 2A 15-ZIP |
3,848 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Bulk | Active | - | 2A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
|
STA406ATRANS 4NPN DARL 60V 6A 10-SIP |
2,422 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 6A | 60V | 1.5V @ 10mA, 3A | 100µA (ICBO) | 2000 @ 3A, 2V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
SMA4038TRANS 6 NPN DARL 120V 3A 15-SIP |
1,753 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | 6 NPN Darlington | 3A | 120V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
SLA4051TRANS 9 NPN DARL 120V 2A 21-SIP |
6,568 | - |
|
Datasheet | - | 21-SSIP Exposed Tab | Tube | Active | 9 NPN Darlington | 2A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 21-SIP w/fin |
|
|
STA461CTRANS 2NPN 70V 6A 10-SIP |
7,573 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 2 NPN | 6A | 70V | 150mV @ 15mA, 1.5A | 10µA (ICBO) | 400 @ 1A, 1V | 3.2W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
SLA4052TRANS 9 NPN DARL 120V 3A 21-SIP |
5,953 | - |
|
Datasheet | - | 21-SSIP Exposed Tab | Tube | Active | 9 NPN Darlington | 3A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 21-SIP w/fin |
|
|
STA412ATRANS 4NPN QUAD 60V 3A 10-SIP |
1,556 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 NPN (Quad) | 3A | 60V | 1V @ 10mA, 1A | 100µA (ICBO) | 300 @ 500mA, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA6026TRANS 3NPN/3PNP DARL 60V 12SIP |
3,719 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 10A | 60V | 1.5V @ 12mA, 6A | 10µA (ICBO) | 2000 @ 6A, 4V | 5W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
