Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SC4886TRANS NPN 150V 14A TO-3PF |
2,642 |
1+：$3.32000 10+：$2.22750 100+：$1.60955 500+：$1.34611 1000+：$1.26154 2000+：$1.23750 |
|
Datasheet | - | TO-3P-3 Full Pack | Bulk | Active | NPN | 14 A | 150 V | 2V @ 500mA, 5A | 100µA (ICBO) | 50 @ 5A, 4V | 80 W | 60MHz | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
2SA1667TRANS PNP 150V 2A TO-220F |
231 |
1+：$1.61000 10+：$1.04450 100+：$0.72250 500+：$0.58475 1000+：$0.54049 2000+：$0.50328 5000+：$0.46596 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | PNP | 2 A | 150 V | 1V @ 70mA, 700mA | 10µA (ICBO) | 60 @ 700mA, 10V | 25 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
2SC3852TRANS NPN 60V 3A TO-220F |
1,952 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | NPN | 3 A | 60 V | 500mV @ 50mA, 2A | 10µA (ICBO) | 500 @ 500mA, 4V | 25 W | 15MHz | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
2SC4153TRANS NPN 120V 7A TO-220F |
2,020 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | NPN | 7 A | 120 V | 500mV @ 300mA, 3A | 100µA (ICBO) | 70 @ 3A, 4V | 30 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
2SA1693TRANS PNP 80V 6A TO-3P |
228 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Bulk | Active | PNP | 6 A | 80 V | 1.5V @ 200mA, 2A | 10µA (ICBO) | 50 @ 2A, 4V | 60 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
2SA1668TRANS PNP 200V 2A TO-220F |
946 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | PNP | 2 A | 200 V | 1V @ 70mA, 700mA | 10µA (ICBO) | 60 @ 700mA, 10V | 25 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
2SC3856TRANS NPN 180V 15A TO-3P |
831 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Bulk | Active | NPN | 15 A | 180 V | 2V @ 500mA, 5A | 100µA (ICBO) | 50 @ 3A, 4V | 130 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
2SC4131TRANS NPN 50V 15A TO-3PF |
297 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Bulk | Active | NPN | 15 A | 50 V | 500mV @ 80mA, 400mA | 10µA (ICBO) | 60 @ 5A, 1V | 60 W | 18MHz | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
|
2SA1746TRANS PNP 50V 12A TO-3PF |
1,226 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Bulk | Active | PNP | 12 A | 50 V | 500mV @ 80mA, 5A | 10µA (ICBO) | 50 @ 5A, 1V | 60 W | 25MHz | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|

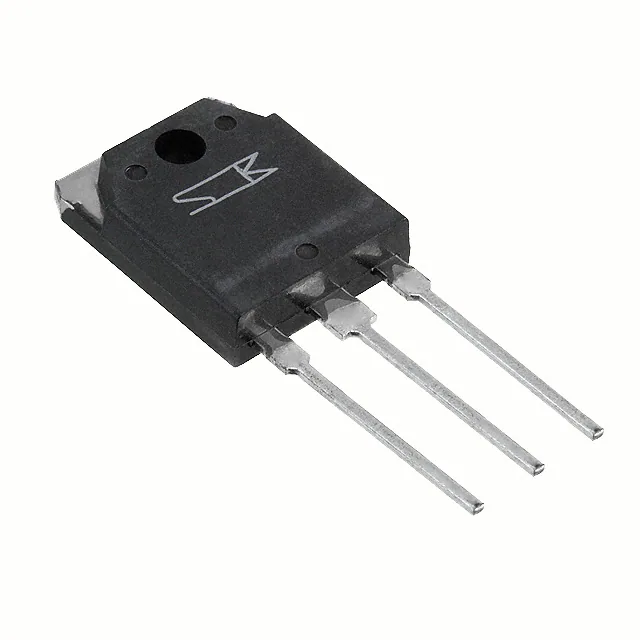

2SB1560TRANS PNP DARL 150V 10A TO-3P |
1,022 |
1+：$2.65000 10+：$1.75750 100+：$1.25225 500+：$1.03671 1000+：$0.96752 2000+：$0.91436 |
|
Datasheet | - | TO-3P-3, SC-65-3 | Bulk | Active | PNP - Darlington | 10 A | 150 V | 2.5V @ 7mA, 7A | 100µA (ICBO) | 5000 @ 7A, 4V | 100 W | 50MHz | 150°C (TJ) | - | - | Through Hole | TO-3P |
