ELECTRONIC COMPONENTS
Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMBTA56-7TRANS PNP 80V 0.5A SOT-23-3 |
2,580 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | PNP | 500 mA | 80 V | 250mV @ 10mA, 100mA | 100nA (ICBO) | 100 @ 100mA, 1V | 300 mW | 50MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
MMBTA13-7TRANS NPN DARL 30V 0.3A SOT-23-3 |
2,445 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN - Darlington | 300 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 300 mW | 125MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
MMBTA42-7TRANS NPN 300V 0.5A SOT-23-3 |
2,486 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN | 500 mA | 300 V | 500mV @ 2mA, 20mA | 100nA (ICBO) | 40 @ 30mA, 10V | 300 mW | 50MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
MMBTA92-7TRANS PNP 300V 0.5A SOT-23-3 |
3,096 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | PNP | 500 mA | 300 V | 500mV @ 2mA, 20mA | 250nA (ICBO) | 25 @ 30mA, 10V | 300 mW | 50MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
,TO-226_straightlead.jpg "ZTX788BSTOA")
|
ZTX788BSTOATRANS PNP 15V 3A E-LINE |
2,731 | - |
|
Datasheet | - | E-Line-3, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 3 A | 15 V | 450mV @ 10mA, 2A | 100nA (ICBO) | 500 @ 10mA, 2V | 1 W | 100MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZTX790ASTOATRANS PNP 40V 2A E-LINE |
5,787 | - |
|
Datasheet | - | E-Line-3, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 2 A | 40 V | 750mV @ 50mA, 2A | 100nA (ICBO) | 300 @ 10mA, 2V | 1 W | 100MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZTX792ASTOATRANS PNP 70V 2A E-LINE |
2,743 | - |
|
Datasheet | - | E-Line-3, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 2 A | 70 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 300 @ 10mA, 2V | 1 W | 100MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|

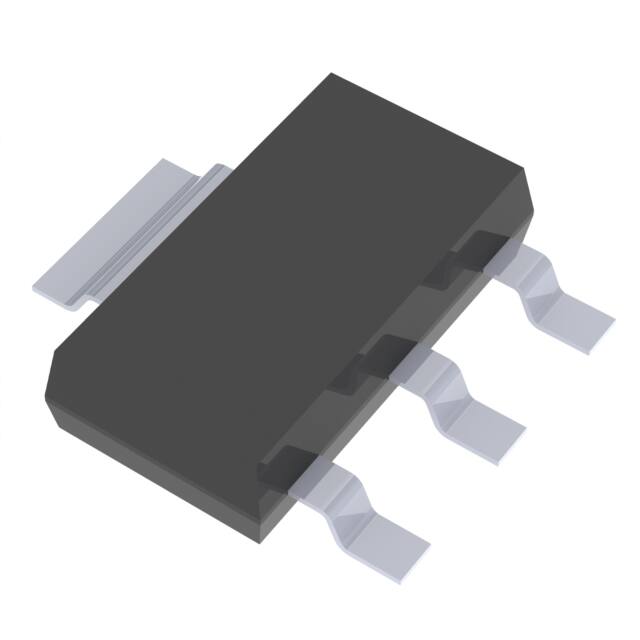

FZT560QTCTRANS PNP 500V 0.15A SOT-223 |
5,545 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | PNP | 150 mA | 500 V | 500mV @ 10mA, 50mA | 100nA | 100 @ 1mA, 10V | 2 W | 60MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
FZT788BTCTRANS PNP 15V 3A SOT-223-3 |
7,147 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | PNP | 3 A | 15 V | 500mV @ 50mA, 3A | 100nA (ICBO) | 500 @ 10mA, 2V | 2 W | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
ZXT13P40DE6QTATRANS PNP 40V 3A SOT-26 |
5,221 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | PNP | 3 A | 40 V | 240mV @ 300mA, 3A | 100nA | 300 @ 1A, 2V | 1.1 W | 115MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-26 |
