ELECTRONIC COMPONENTS
Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSB-500-50-NBRES CHAS MNT 100 UOHM .25% 25W N |
572 | - |
|
Datasheet | RS | Rectangular Case | Bulk | Active | 100 µOhms | ±0.25% | 25W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense, Pulse Withstanding | - | Flanges | 1.750" L x 3.260" W (44.45mm x 82.80mm) | 1.650" (41.90mm) | M4 Threaded | - | - | - |
|

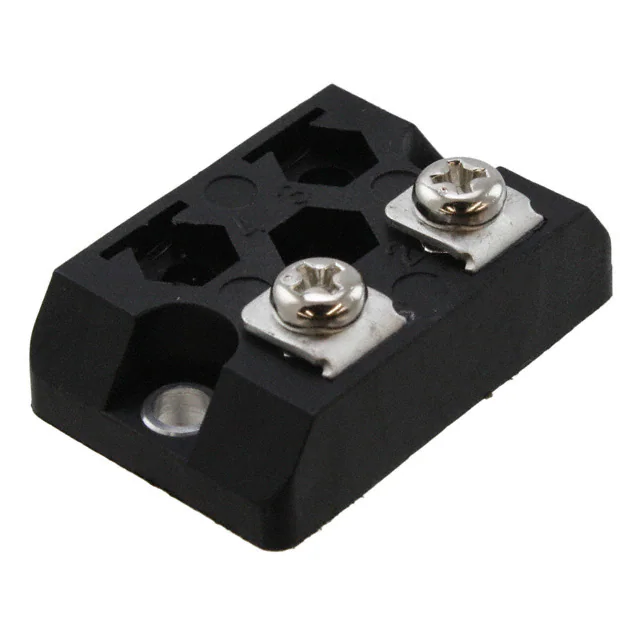

PF2272-20RJ1RES CHAS MNT 20 OHM 5% 200W |
614 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 20 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
RSB-500-50RES CHAS MNT 100 UOHM .25% 25W |
963 | - |
|
Datasheet | RS | Rectangular Case | Bulk | Active | 100 µOhms | ±0.25% | 25W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense, Pulse Withstanding | - | Flanges | 1.750" L x 3.260" W (44.45mm x 82.80mm) | 1.650" (41.90mm) | M4 Threaded | - | - | - |
|
|
PF2272-10RJ1RES CHAS MNT 10 OHM 5% 200W |
3,320 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 10 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-5RJ1RES CHAS MNT 5 OHM 5% 200W |
1,724 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 5 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-1RJ1RES CHAS MNT 1 OHM 5% 200W |
751 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 1 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-2RJ1RES CHAS MNT 2 OHM 5% 200W |
416 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 2 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-0R1J1RES CHAS MNT 0.1 OHM 5% 200W |
325 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 100 mOhms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-0R2J1RES CHAS MNT 0.2 OHM 5% 200W |
255 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 200 mOhms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-100RJ1RES CHAS MNT 100 OHM 5% 200W |
243 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 100 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
