ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVT06R0200FERRES 0.02 OHM 1% 1/3W 0603 |
45,450 | - |
|
Datasheet | LVT | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.333W, 1/3W | Metal Element | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) | 2 | - |
|
JR0402X20E0402 20 AMP JUMPER |
2,504 | - |
|
Datasheet | JR | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 0 Ohms | Jumper | - | Metal Element | - | - | -55°C ~ 150°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) | 2 | - |
|

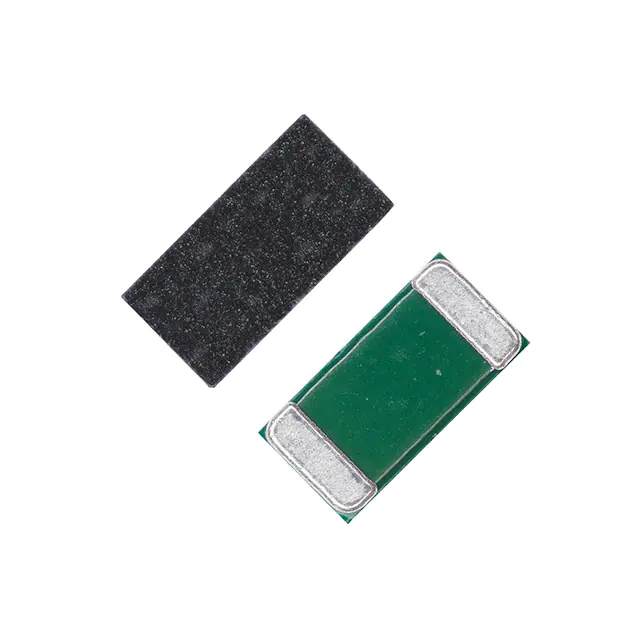

JR1206X40E1206 40 AMP JUMPER |
79,833 | - |
|
Datasheet | JR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 0 Ohms | Jumper | - | Metal Element | - | - | -55°C ~ 150°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|
PCS1206FR0010ET1W 0.001 OHMS 1% 1206 |
39,934 | - |
|
Datasheet | PCS | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 1W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 170°C | - | 1206 | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.035" (0.88mm) | 2 | - |
|
|
MCS1632R020FERRES 0.02 OHM 1% 1W 1206 |
456,108 | - |
|
Datasheet | MCS | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 1W | Metal Element | Current Sense, Flame Retardant Coating, Safety | ±50ppm/°C | -55°C ~ 150°C | - | 1632 | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.033" (0.85mm) | 2 | - |
|
|
MCS3264R015FERRES 0.015 OHM 1% 2W 2512 |
274,673 | - |
|
Datasheet | MCS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 2W | Metal Element | Current Sense, Flame Retardant Coating, Safety | ±50ppm/°C | -55°C ~ 150°C | - | 3264 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.024" (0.60mm) | 2 | - |
|
|
LVT04R0100FERRES 0.01 OHM 1% 1/3W 0402 |
46,932 | - |
|
Datasheet | LVT | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 0.333W, 1/3W | Metal Element | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.014" (0.35mm) | 2 | - |
|
|
PCS1206FR0030ET1W 0.003 OHMS 1% 1206 |
34,328 | - |
|
Datasheet | PCS | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 1W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 170°C | - | 1206 | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.027" (0.68mm) | 2 | - |
|
|
MCS3264R050FERRES 0.05 OHM 1% 2W 2512 |
106,767 | - |
|
Datasheet | MCS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 50 mOhms | ±1% | 2W | Metal Element | Current Sense, Flame Retardant Coating, Safety | ±50ppm/°C | -55°C ~ 150°C | - | 3264 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.024" (0.60mm) | 2 | - |
|
MCS1632R015FERRES 0.015 OHM 1% 1W 1206 |
21,474 | - |
|
Datasheet | MCS | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 1W | Metal Element | Current Sense, Flame Retardant Coating, Safety | ±50ppm/°C | -55°C ~ 150°C | - | 1632 | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.033" (0.85mm) | 2 | - |
