ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVK24R030DERRES 0.03 OHM 0.5% 1W 2412 |
3,413 | - |
|
Datasheet | LVK | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 30 mOhms | ±0.5% | 1W | Thick Film | Anti-Corrosive, Current Sense, Moisture Resistant | ±50ppm/°C | -40°C ~ 125°C | - | 2412 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.026" (0.65mm) | 4 | - |
|
FCSL90R050DERRES 0.05 OHM 0.5% 4W 3518 |
1,600 | - |
|
Datasheet | FCSL | Wide 3518 (9045 Metric), 1835 | Tape & Reel (TR) | Active | 50 mOhms | ±0.5% | 4W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 9045 | 0.177" L x 0.350" W (4.50mm x 8.90mm) | 0.028" (0.70mm) | 2 | - |
 Series.jpg "HVC0805T5005JET")
|
HVC0805T5005JETRES SMD 50M OHM 5% 1/8W 0805 |
649 | - |
|
Datasheet | HVC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 50 MOhms | ±5% | 0.125W, 1/8W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) | 2 | - |
.jpg "HVC0402T5005JET")
|
HVC0402T5005JETRES SMD 50M OHM 5% 1/20W 0402 |
3,214 | - |
|
Datasheet | HVC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 50 MOhms | ±5% | 0.05W, 1/20W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.041" L x 0.020" W (1.04mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|
|
HVC0805T2505JETRES SMD 25M OHM 5% 1/8W 0805 |
448 | - |
|
Datasheet | HVC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 25 MOhms | ±5% | 0.125W, 1/8W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) | 2 | - |
|
AP725 2R FRES SMD 2 OHM 1% 20W TO263 |
3,576 | - |
|
Datasheet | ARCOL, AP725 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tray | Active | 2 Ohms | ±1% | 20W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | TO-263 (D2PAK) | 0.398" L x 0.177" W (10.10mm x 4.50mm) | 0.192" (4.88mm) | 2 | - |
|

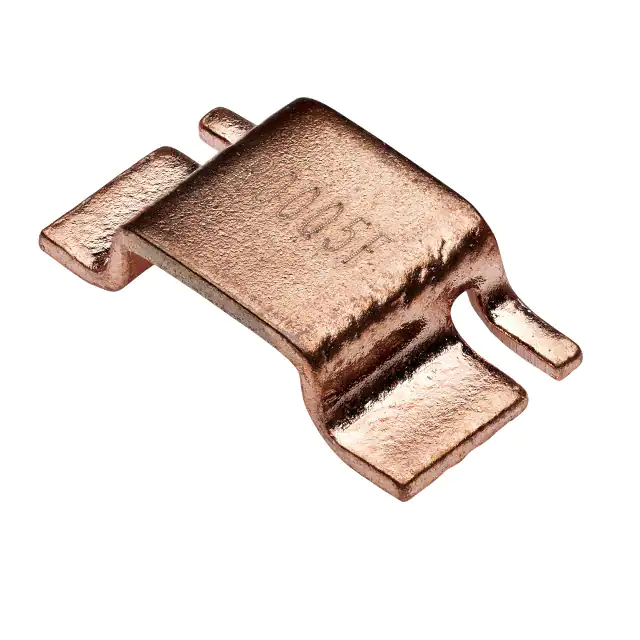

GKM5R0005FE-TR5W 1% 0.0005 OHM |
491 | - |
|
Datasheet | GK | Nonstandard | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | - | 0.272" L x 0.260" W (6.90mm x 6.60mm) | 0.138" (3.50mm) | 4 | - |
|
RW2R0DAR100JETRES 0.1 OHM 5% 2W J LEAD |
11,350 | - |
|
Datasheet | RW | 4524 J-Lead | Tape & Reel (TR) | Active | 100 mOhms | ±5% | 2W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | SMD J-Lead, Recessed | 0.455" L x 0.240" W (11.56mm x 6.10mm) | 0.231" (5.87mm) | 2 | - |
|
FKM5R0010FE-TR5W 1% 0.001 OHM |
697 | - |
|
Datasheet | FK | Nonstandard | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | - | 0.272" L x 0.260" W (6.90mm x 6.60mm) | 0.138" (3.50mm) | 4 | - |
|
|
FKM5R0005FE-TR5W 1% 0.0005 OHM |
1,112 | - |
|
Datasheet | FK | Nonstandard | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | - | 0.272" L x 0.260" W (6.90mm x 6.60mm) | 0.138" (3.50mm) | 4 | - |
