ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "RW0S6BBR100FET")
|
RW0S6BBR100FETRES 0.1 OHM 1% 0.6W 2010 |
2,027 | - |
|
Datasheet | RW | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 0.6W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 2010 | 0.202" L x 0.100" W (5.14mm x 2.54mm) | 0.140" (3.55mm) | 2 | - |
|
RW2S0CBR020JERES SMD 20M OHM 5% 2W J LEAD |
200 | - |
|
Datasheet | RW | 4122 J-Lead | Bulk | Active | 20 mOhms | ±5% | 2W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | SMD J-Lead, Pedestal | 0.407" L x 0.226" W (10.34mm x 5.74mm) | 0.227" (5.77mm) | 2 | - |
|
HVC4020V2506JETRES 250M OHM 5% 1.5W 4020 |
0 | - |
|
Datasheet | HVC | Nonstandard | Tape & Reel (TR) | Active | 250 MOhms | ±5% | 1.5W | Thick Film | High Voltage | ±50ppm/°C | -55°C ~ 155°C | - | 4020 | 0.402" L x 0.201" W (10.20mm x 5.10mm) | 0.031" (0.80mm) | 2 | - |
|
HVF1206T5001FERES 1206 5K OHM 1% 03W 100PPM/ |
573 | - |
|
Datasheet | HVF | 1206 (3216 Metric) | Bulk | Active | 5 kOhms | ±1% | 0.3W | Thick Film | High Voltage, Moisture Resistant, Non-Magnetic | ±100ppm/°C | -55°C ~ 200°C | - | 1206 | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.028" (0.71mm) | 2 | - |
|
|
HVF1206T7506JEHVF1206T7506JE |
470 | - |
|
Datasheet | HVF | 1206 (3216 Metric) | Bulk | Active | 750 MOhms | ±5% | 0.3W | Thick Film | High Voltage, Moisture Resistant, Non-Magnetic | - | -55°C ~ 200°C | - | 1206 | 0.128" L x 0.063" W (3.25mm x 1.60mm) | 0.028" (0.71mm) | 2 | - |
|
RW1S0BAR030FERES SMD 30M OHM 1% 1W J LEAD |
134 | - |
|
Datasheet | RW | 2512 J-Lead | Bulk | Active | 30 mOhms | ±1% | 1W | Wirewound | Current Sense | - | -55°C ~ 150°C | - | SMD J-Lead, Pedestal | 0.246" L x 0.136" W (6.25mm x 3.45mm) | 0.141" (3.58mm) | 2 | - |
|

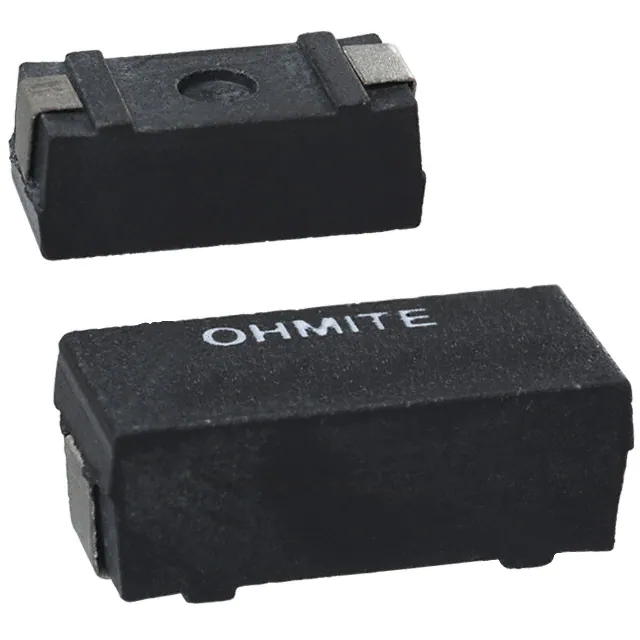

RW3R0DB100RJERES SMD 100 OHM 5% 3W J LEAD |
0 | - |
|
Datasheet | RW | 6327 J-Lead | Bulk | Active | 100 Ohms | ±5% | 3W | Wirewound | Current Sense | ±20ppm/°C | -55°C ~ 150°C | - | SMD J-Lead, Recessed | 0.625" L x 0.273" W (15.88mm x 6.93mm) | 0.231" (5.87mm) | 2 | - |
|
|
FCSL150R020FERRES 0.02 OHM 10W 2959 WIDE |
500 | - |
|
Datasheet | FCSL | Wide 5929 (15075 Metric), 2959 | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 10W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 15075 | 0.295" L x 0.591" W (7.50mm x 15.00mm) | 0.028" (0.70mm) | 2 | - |
|
|
RW1S0CKR005FERES SMD 5M OHM 1% 1W J LEAD |
900 | - |
|
Datasheet | RW1S0CK | 4324 J-Lead (4 Terminals) | Bulk | Active | 5 mOhms | ±1% | 1W | Thick Film | Current Sense, Flame Proof, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 125°C | - | - | 0.425" L x 0.244" W (10.80mm x 6.20mm) | 0.091" (2.30mm) | 4 | - |
|
RW1S0CKR050DETRES 0.05 OHM 0.5% 1W |
919 | - |
|
Datasheet | RW1 | 4324 J-Lead (4 Terminals) | Tape & Reel (TR) | Active | 50 mOhms | ±0.5% | 1W | Thick Film | Current Sense, Flame Proof, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 125°C | - | - | 0.425" L x 0.244" W (10.80mm x 6.20mm) | 0.091" (2.30mm) | 4 | - |
