ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDV08FR200ETRES 0.2 OHM 1% 1/4W 0805 |
200 | - |
|
Datasheet | KDV | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 200 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
KDV06FR470ETRES 0.47 OHM 1% 1/5W 0603 |
919 | - |
|
Datasheet | KDV | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 470 mOhms | ±1% | 0.2W, 1/5W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 155°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
KDV12FR082ETRES 0.082 OHM 1% 1/2W 1206 |
324 | - |
|
Datasheet | KDV | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 82 mOhms | ±1% | 0.5W, 1/2W | Metal Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 1206 | 0.133" L x 0.063" W (3.10mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
AS25J10R0ETRES SMD 10 OHM 5% 1.5W 2512 |
165 | - |
|
Datasheet | AS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 1.5W | Thick Film | Pulse Withstanding | ±400ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
FCSL90R005FERRES 0.005 OHM 4W 3518 WIDE |
833 | - |
|
Datasheet | FCSL | Wide 3518 (9045 Metric), 1835 | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 4W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 9045 | 0.177" L x 0.350" W (4.50mm x 8.90mm) | 0.028" (0.70mm) | 2 | - |
|
FCSL110R001JERRES 0.001 OHM 5W 4320 WIDE |
28 | - |
|
Datasheet | FCSL | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 1 mOhms | ±5% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±150ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 2 | - |
|
FC4L110R005FERRES 0.005 OHM 5W 4320 WIDE |
94 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
|
KDV12DR510ETRES 0.51 OHM 0.5% 1/2W 1206 |
813 | - |
|
Datasheet | KDV | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 510 mOhms | ±0.5% | 0.5W, 1/2W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.133" L x 0.063" W (3.10mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
L4T12FR010DER0.01 OHM 1206 0.5% 0.50W |
550 | - |
|
Datasheet | L4T12 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±0.5% | 0.5W, 1/2W | Thick Film | Current Sense | ±75ppm/°C | -55°C ~ 155°C | - | 1206 | 0.118" L x 0.063" W (3.00mm x 1.60mm) | 0.026" (0.65mm) | 4 | - |
|

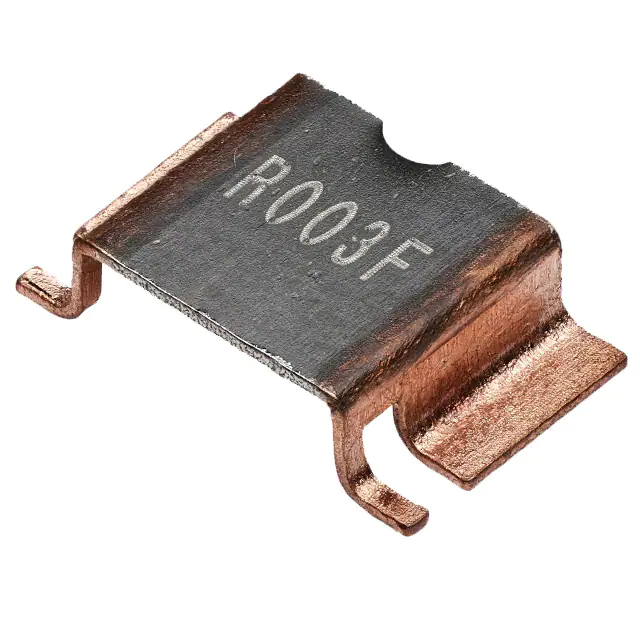

GKM5R0010FE-TR5W 1% 0.001 OHM |
602 | - |
|
Datasheet | GK | Nonstandard | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 5W | Metal Film | Current Sense | ±70ppm/°C | -55°C ~ 155°C | - | - | 0.272" L x 0.260" W (6.90mm x 6.60mm) | 0.138" (3.50mm) | 4 | - |
