ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RW7S0FB10R0JETRES 10 OHM 5% 7W |
980 | - |
|
Datasheet | RW | Nonstandard | Bulk | Active | 10 Ohms | ±5% | 7W | Wirewound | - | ±50ppm/°C | -55°C ~ 155°C | - | - | 1.128" L x 0.471" W (28.65mm x 11.96mm) | 0.530" (13.46mm) | 2 | - |
|
LVK24R033FERRES 0.033 OHM 1% 1W 2512 |
975 | - |
|
Datasheet | LVK | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 33 mOhms | ±1% | 1W | Thick Film | Anti-Corrosive, Current Sense, Moisture Resistant | ±50ppm/°C | -40°C ~ 125°C | - | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.030" (0.75mm) | 4 | - |
|
KDV02DR510ETRES 0.51 OHM 0.5% 1/10W 0201 |
780 | - |
|
Datasheet | KDV | 0201 (0603 Metric) | Tape & Reel (TR) | Active | 510 mOhms | ±0.5% | 0.1W, 1/10W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 155°C | - | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.012" (0.31mm) | 2 | - |
.jpg "HVC0603T1005FET")
|
HVC0603T1005FETRES 10 MOHM 1% 1/10W 0603 |
875 | - |
|
Datasheet | HVC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 10 MOhms | ±1% | 0.1W, 1/10W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.059" L x 0.031" W (1.50mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
LVK24R039DERRES SMD 39M OHM 0.5% 1W 2512 |
1,000 | - |
|
Datasheet | LVK | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 39 mOhms | ±0.5% | 1W | Thick Film | Anti-Corrosive, Current Sense, Moisture Resistant | ±50ppm/°C | -40°C ~ 125°C | - | 2412 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.026" (0.65mm) | 4 | - |
|
|
605SJR00800E-TRES 0.008 OHM 5% 1/2W L BEND |
0 | - |
|
Datasheet | 60S | Strip, L Bend | Tape & Reel (TR) | Obsolete | 8 mOhms | ±5% | 0.5W, 1/2W | Metal Element | Current Sense, Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -40°C ~ 155°C | - | SMD | 0.551" L x 0.205" W (14.00mm x 5.20mm) | 0.079" (2.00mm) | 2 | - |
.jpg "HVC0402T1004JET")
|
HVC0402T1004JETRES 1 MOHM 5% 1/20W 0402 |
70 | - |
|
Datasheet | HVC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 1 MOhms | ±5% | 0.05W, 1/20W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.041" L x 0.020" W (1.04mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|
|
HVC0402T1005JETRES 10 MOHM 5% 1/20W 0402 |
400 | - |
|
Datasheet | HVC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 MOhms | ±5% | 0.05W, 1/20W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.041" L x 0.020" W (1.04mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|

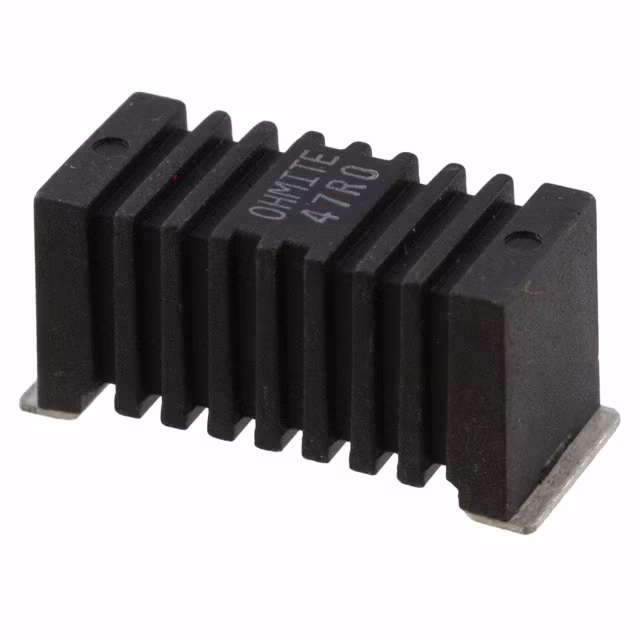

RW5S0FA47R0JERES SMD 47 OHM 5% 5W L BEND |
520 | - |
|
Datasheet | RW | SMD, L-Bend | Bulk | Active | 47 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 155°C | - | - | 0.806" L x 0.365" W (20.47mm x 9.27mm) | 0.406" (10.31mm) | 2 | - |
|
|
MC101821007FERES 1G OHM 1% 3/4W |
29 | - |
|
Datasheet | MC | SMD, J-Bend | Bulk | Active | 1 GOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage, Non-Inductive | ±1000ppm/°C | -55°C ~ 180°C | - | - | 0.250" L x 0.250" W (6.35mm x 6.35mm) | 0.142" (3.60mm) | 2 | - |
