ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "TNPW1206200RBYEN")
|
TNPW1206200RBYENRES 200 OHM 0.1% 0.52W 1206 |
144 | - |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 200 Ohms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
WSL1206R2000FTARES 0.2 OHM 1% 1/4W 1206 |
6,927 | - |
|
Datasheet | WSL | - | Tape & Reel (TR) | Active | 200 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
-1mOhm.JPG "TLR2BDTD1L00F75")
|
TLR2BDTD1L00F75RES 0.001 OHM 1% 1/2W 1206 |
5,005 | - |
|
Datasheet | TLR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.032" (0.80mm) | 2 | - |
.jpg "ERA-8APB1912V")
|
ERA-8APB1912VRES SMD 19.1K OHM 0.1% 1/4W 1206 |
4,828 | - |
|
Datasheet | ERA-8A | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 19.1 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|

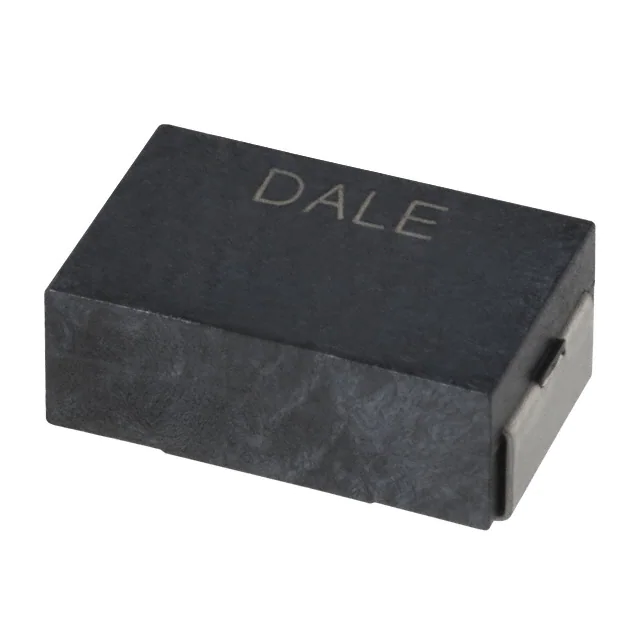

WSC452710R00JEARES 10 OHM 5% 2W 4527 |
4,169 | - |
|
Datasheet | WSC | 4527 J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 2W | Wirewound | Automotive AEC-Q200 | ±20ppm/°C | -65°C ~ 275°C | AEC-Q200 | 4527 | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.177" (4.49mm) | 2 | - |
|
|
TLR2BDTD1L50F75RES 1.5M OHM 1% 1/2W 1206 |
2,127 | - |
|
Datasheet | TLR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 1.5 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.032" (0.80mm) | 2 | - |
-X-mOhm.JPG "TLR2BDTD2L00F75")
|
TLR2BDTD2L00F75RES 0.002 OHM 1% 1/2W 1206 |
1,712 | - |
|
Datasheet | TLR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.032" (0.80mm) | 2 | - |
|
WSR2R0800FEARES 0.08 OHM 1% 2W 4527 |
1,421 | - |
|
Datasheet | WSR | 4527 J-Lead | Tape & Reel (TR) | Active | 80 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 4527 | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.100" (2.54mm) | 2 | - |
|
PE1206FRM470R012LRES 0.012 OHM 1% 1W 1206 |
7,851 | - |
|
Datasheet | PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 12 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
PE0603FRM470R04LRES 0.04 OHM 1% 2/5W 0603 |
3,925 | - |
|
Datasheet | PE_L | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 40 mOhms | ±1% | 0.4W, 2/5W | Metal Film | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0603 | 0.063" L x 0.030" W (1.60mm x 0.76mm) | 0.024" (0.60mm) | 2 | - |
|
RP73D2B1K5BTGRES SMD 1.5K OHM 0.1% 1/4W 1206 |
245 | - |
|
Datasheet | RP73, Holsworthy | 1206 (3216 Metric) | Strip | Active | 1.5 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | - | ±15ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.026" (0.65mm) | 2 | - |
|
RP73F3A7R68FTGRES SMD 7.68 OHM 1% 1W 2512 |
218 | - |
|
Datasheet | RP73, Holsworthy | 2512 (6432 Metric) | Strip | Active | 7.68 Ohms | ±1% | 1W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
RW0S6BB1R00FETRES SMD 1 OHM 1% 0.6W 2010 |
10,218 | - |
|
Datasheet | RW | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±1% | 0.6W | Wirewound | Current Sense | ±50ppm/°C | -55°C ~ 150°C | - | 2010 | 0.202" L x 0.100" W (5.14mm x 2.54mm) | 0.140" (3.55mm) | 2 | - |
|
ERJ-1TRSJR12URES 0.12 OHM 5% 1W 2512 |
1,756 | - |
|
Datasheet | ERJ-1TR | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 120 mOhms | ±5% | 1W | Thick Film | Automotive AEC-Q200, Current Sense | 0/ +200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.028" (0.70mm) | 2 | - |
|
|
TNPW1206232KBYEARES 232K OHM 0.1% 0.52W 1206 |
5,000 | - |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 232 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
WSL1206R1200FEARES 0.12 OHM 1% 1/4W 1206 |
3,900 | - |
|
Datasheet | WSL | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 120 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
WSL2010R0150FEBRES 0.015 OHM 1% 1/2W 2010 |
1,070 | - |
|
Datasheet | WSL | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.035" (0.89mm) | 2 | - |
.jpg "HV732HRTTE1005F")
|
HV732HRTTE1005FRES 10 MOHM 1% 1/2W 2010 |
4,000 | - |
|
Datasheet | HV73-RT | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 10 MOhms | ±1% | 0.5W, 1/2W | Thick Film | Anti-Sulfur, High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.028" (0.70mm) | 2 | - |
|
|
HV732HRTTE1003FRES 100K OHM 1% 1/2W 2010 |
4,000 | - |
|
Datasheet | HV73-RT | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±1% | 0.5W, 1/2W | Thick Film | Anti-Sulfur, High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.028" (0.70mm) | 2 | - |
|
|
LTR100JZPJLR12RES SMD 0.12 OHM 5% 3W 2512 WIDE |
4,000 | - |
|
Datasheet | LTR | Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | Active | 120 mOhms | ±5% | 3W | Thick Film | Automotive AEC-Q200, Current Sense | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1225 | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.028" (0.70mm) | 2 | - |
