ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PWR4525W1000JERES SMD 100 OHM 5% 2W 4525 |
2,998 | - |
|
Datasheet | PWR4525 | 4525 J-Lead | Tape & Reel (TR) | Active | 100 Ohms | ±5% | 2W | Wirewound | Current Sense, Moisture Resistant, Pulse Withstanding | ±20ppm/°C | -55°C ~ 275°C | - | - | 0.449" L x 0.252" W (11.40mm x 6.40mm) | 0.197" (5.00mm) | 2 | - |
|
CRT0805-BV-1002ELFRES SMD 10K OHM 0.1% 1/8W 0805 |
4,990 | - |
|
Datasheet | CRT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Current Sense | ±5ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
CRT0805-BV-1001ELFRES SMD 1K OHM 0.1% 1/8W 0805 |
4,775 | - |
|
Datasheet | CRT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Current Sense | ±5ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|

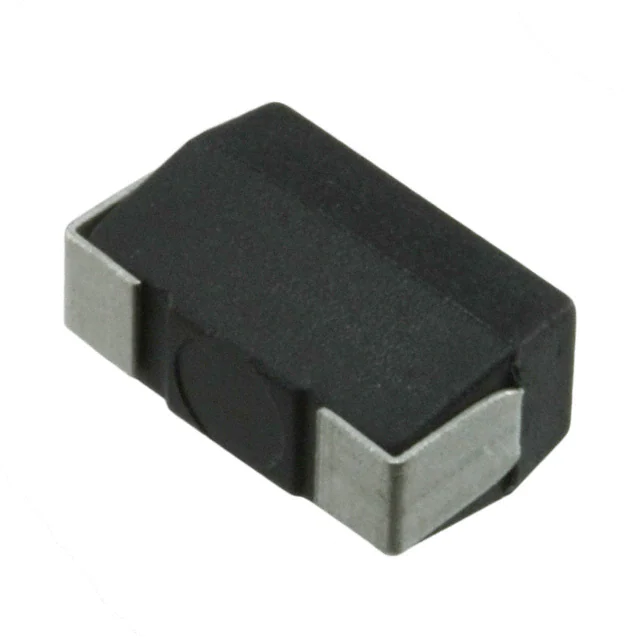

PWR3014W1R00JERES SMD 1 OHM 5% 1W 3014 |
1,000 | - |
|
Datasheet | PWR3014 | 3014 J-Lead | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 1W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 3014 | 0.295" L x 0.138" W (7.50mm x 3.50mm) | 0.203" (5.15mm) | 2 | - |
|
PWR5322WR750JERES 0.75 OHM 5% 3W 5322 |
1,452 | - |
|
Datasheet | PWR5322 | 5322 J-Lead | Tape & Reel (TR) | Active | 750 mOhms | ±5% | 3W | Wirewound | Current Sense, Pulse Withstanding | ±90ppm/°C | -55°C ~ 155°C | - | 5322 | 0.532" L x 0.217" W (13.50mm x 5.50mm) | 0.243" (6.16mm) | 2 | - |
|
CSS2H-3920R-L700FCURRENTSENSESHUNT 3920 R0007 1% |
465 | - |
|
Datasheet | CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.7 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.050" (1.27mm) | 2 | - |
|
PWR4318WR600FRES 0.6 OHM 1% 2W 4318 |
370 | - |
|
Datasheet | PWR4318 | 4318 J-Lead | Bulk | Active | 600 mOhms | ±1% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±90ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|
|
PWR4525W1501JRES SMD 1.5K OHM 5% 2W 4525 |
550 | - |
|
Datasheet | PWR4525 | 4525 J-Lead | Bulk | Active | 1.5 kOhms | ±5% | 2W | Wirewound | Current Sense, Moisture Resistant, Pulse Withstanding | ±20ppm/°C | -55°C ~ 275°C | - | - | 0.449" L x 0.252" W (11.40mm x 6.40mm) | 0.197" (5.00mm) | 2 | - |
|
PWR2615W10R0FRES SMD 10 OHM 1% 1W 2615 |
484 | - |
|
Datasheet | PWR2615 | 2615 J-Lead | Bulk | Active | 10 Ohms | ±1% | 1W | Wirewound | Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 275°C | - | - | 0.260" L x 0.154" W (6.60mm x 3.90mm) | 0.142" (3.60mm) | 2 | - |
|
|
PWR4525W2000FRES SMD 200 OHM 1% 2W 4525 |
480 | - |
|
Datasheet | PWR4525 | 4525 J-Lead | Bulk | Active | 200 Ohms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant, Pulse Withstanding | ±20ppm/°C | -55°C ~ 275°C | - | - | 0.449" L x 0.252" W (11.40mm x 6.40mm) | 0.197" (5.00mm) | 2 | - |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for Chip Resistor - Surface Mount?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
