ELECTRONIC COMPONENTS
Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRM2512-FX-3321ELFRES 3.32K OHM 1% 2W 2512 |
0 | - |
|
Datasheet | CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 3.32 kOhms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
|
CRM2512-FX-2201ELFRES SMD 2.2K OHM 1% 2W 2512 |
0 | - |
|
Datasheet | CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 2.2 kOhms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|

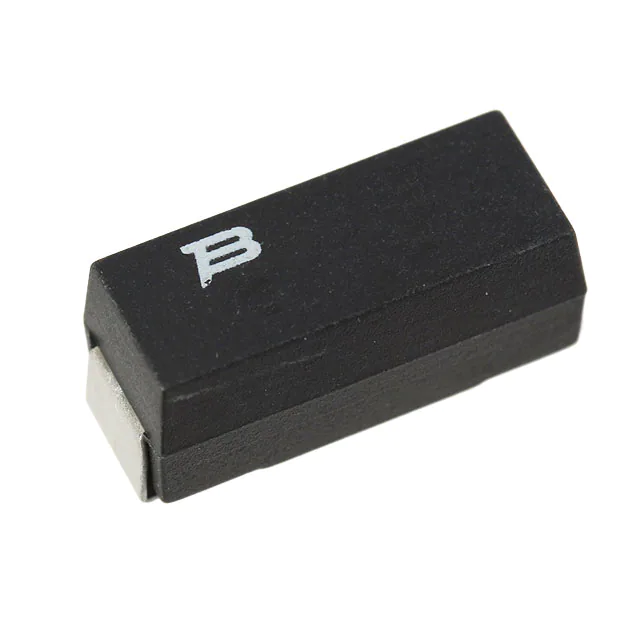

PWR5322W1000JERES SMD 100 OHM 5% 3W 5322 |
0 | - |
|
Datasheet | PWR5322 | 5322 J-Lead | Tape & Reel (TR) | Active | 100 Ohms | ±5% | 3W | Wirewound | Current Sense, Pulse Withstanding | ±20ppm/°C | -55°C ~ 155°C | - | 5322 | 0.532" L x 0.217" W (13.50mm x 5.50mm) | 0.243" (6.16mm) | 2 | - |
|
PWR263S-20-10R0FRES SMD 10 OHM 1% 20W D2PAK |
8 | - |
|
Datasheet | PWR263S-20 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 10 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.192" (4.88mm) | 2 | - |
|
|
PWR263S-20-7R50JRES SMD 7.5 OHM 5% 20W D2PAK |
7 | - |
|
Datasheet | PWR263S-20 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 7.5 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.192" (4.88mm) | 2 | - |
|
|
PWR263S-20-30R0JRES SMD 30 OHM 5% 20W D2PAK |
0 | - |
|
Datasheet | PWR263S-20 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 30 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.192" (4.88mm) | 2 | - |
|
|
PWR263S-20-15R0JRES SMD 15 OHM 5% 20W D2PAK |
14 | - |
|
Datasheet | PWR263S-20 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 15 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.192" (4.88mm) | 2 | - |
|
PWR263S-35-7500FRES SMD 750 OHM 1% 35W D2PAK |
0 | - |
|
Datasheet | PWR263S-35 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 750 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.177" (4.50mm) | 2 | - |
|
PWR163S-25-7R50JRES SMD 7.5 OHM 5% 25W DPAK |
24 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tube | Active | 7.5 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-4700JRES SMD 470 OHM 5% 25W DPAK |
13 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tube | Active | 470 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
