ELECTRONIC COMPONENTS
Current Sensors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Measuring | Sensor Type | Current - Sensing | Number of Channels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage - Supply | Response Time | Current - Supply (Max) | Operating Temperature | Grade | Qualification | Polarization | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LES 15-NPSENSOR CURRENT HALL 15A UNIPOLAR |
226 | - |
|
Datasheet | LES | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±0.1% | ±2.25% | 4.75V ~ 5.25V | 400ns | 20.8mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
LESR 6-NPSENSOR CURRENT HALL 6A UNIPOLAR |
202 | - |
|
Datasheet | LESR | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 23mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|

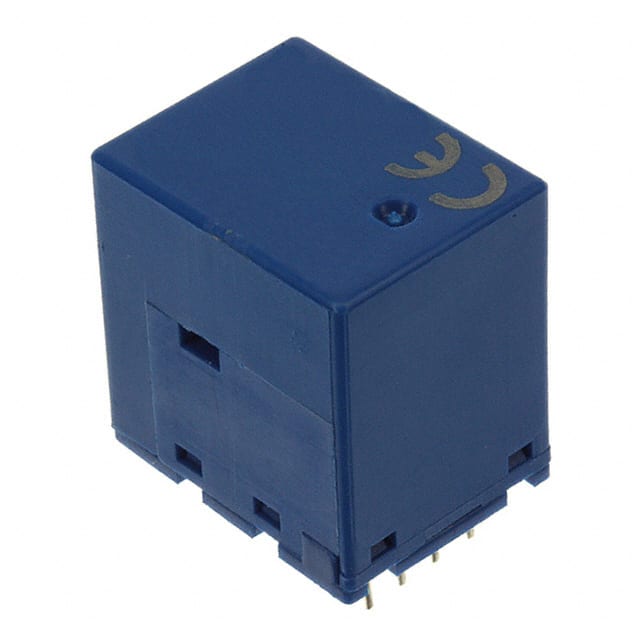

HX 20-PSENSOR CURRENT HALL 20A AC/DC |
483 | - |
|
Datasheet | HX | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 20A | 1 | Ratiometric, Voltage | - | 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -25°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
HX 05-PSENSOR CURRENT HALL 5A AC/DC |
297 | - |
|
Datasheet | HX | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 5A | 1 | Ratiometric, Voltage | - | 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -25°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
HOB 130-P1 MHZ OPEN-LOOP CURRENT SENSOR 1 |
282 | - |
|
Datasheet | HOB-P | Module | Bulk | Active | AC/DC | Open Loop | 130A | 1 | Voltage | 8mV/A | 1MHz | ±0.45% | - | 4.6V ~ 5.5V | 200ns | 26mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
HY 10-PSENSOR CURRENT HALL 10A AC/DC |
363 | - |
|
Datasheet | HY | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 10A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±12V ~ 15V | 3µs | 10mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

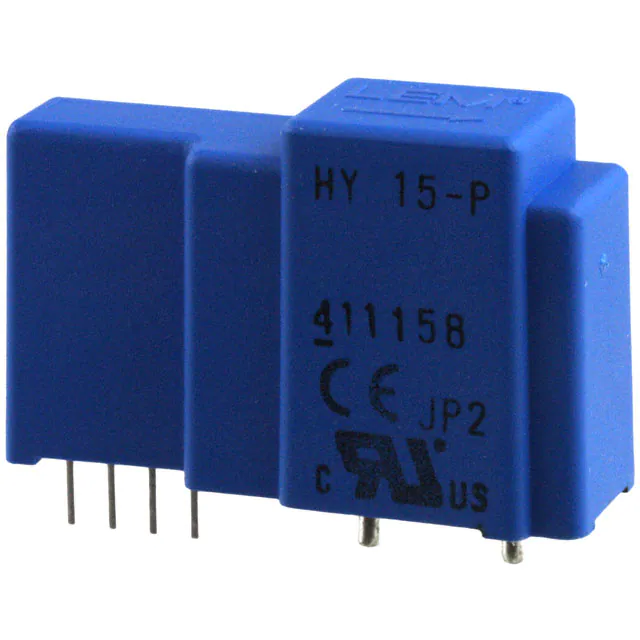

HY 15-PSENSOR CURRENT HALL 15A AC/DC |
145 | - |
|
Datasheet | HY | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 15A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±12V ~ 15V | 3µs | 10mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
HO 250-SSENSOR CURRENT HALL 250A AC/DC |
106 | - |
|
Datasheet | HO-S | Module, Single Pass Through | Tray | Active | AC/DC | Hall Effect, Open Loop | 250A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.5% | ±1% | 5V | 3.5µs | 15mA | -40°C ~ 105°C | - | - | Bidirectional | Chassis Mount | - |
|
HAIS 150-PSENSOR CURRENT HALL 150A AC/DC |
115 | - |
|
Datasheet | HAIS | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 150A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | 5V | 5µs | 19mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
|
HAIS 400-PSENSOR CURRENT HALL 400A AC/DC |
101 | - |
|
Datasheet | HAIS | Module | Tray | Not For New Designs | AC/DC | Hall Effect, Open Loop | 400A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | 5V | 5µs | 19mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
