ELECTRONIC COMPONENTS
Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX526CEWGIC DAC 12BIT V-OUT 24SOIC |
3,338 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
MX7225LN+IC DAC 8BIT W/AMP 24-DIP |
3,921 | - |
|
Datasheet | * | - | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

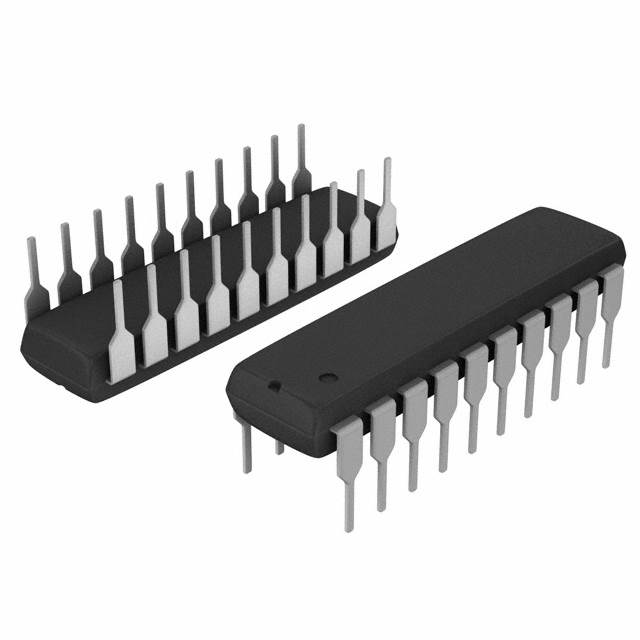

MAX525BEPP+IC DAC 12BIT QUAD LP 20-DIP |
2,444 | - |
|
Datasheet | - | 20-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 4 | 12µs (Typ) | Voltage - Buffered | No | SPI | External | 5V | 5V | ± 1 (Max), 1 (Max) | R-2R | -40°C ~ 85°C | 20-PDIP | Through Hole | - | - |
|
|
MAX526CEWG+TIC DAC 12BIT V-OUT 24SOIC |
3,457 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
|
MX7538KEWG+TIC DAC 14BIT A-OUT 24SOIC |
2,480 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
|
MX7228KEWG+TIC DAC 8BIT V-OUT 24SOIC |
1,804 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 8 | 5µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, ±5V | 13.5V ~ 16.5V, 5V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 24-SOIC | Surface Mount | - | - |
|
MAX536AEWEIC DAC 12BIT V-OUT 16SOIC |
2,700 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
MAX536AEPEIC DAC 12BIT V-OUT 16DIP |
3,726 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
|
MAX537AEPEIC DAC 12BIT V-OUT 16DIP |
1,533 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 4 | 5µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
|
MX7547LCWG+TIC DAC 12BIT A-OUT 24SOIC |
1,262 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 24-SOIC | Surface Mount | - | - |
