ELECTRONIC COMPONENTS
Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR072FS0550ZFUSE SQUARE 550A 1.3KVAC/1KVDC |
9,432 | - |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 550A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
PSR032DL0800XFUSE SQUARE 800A 700VAC/600VDC |
2,887 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR032UL0800XFUSE SQUARE 800A 700VAC/600VDC |
8,142 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
|
PSR032DL0900XFUSE SQUARE 900A 700VAC/600VDC |
6,051 | - |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 900A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
|
LA070URD33LI1100FUSE SQUARE 1.1KA 700VAC RECT |
6,450 | - |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1.1kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
LA070URD33LI1400FUSE SQUARE 1.4KA 700VAC RECT |
9,863 | - |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1.4kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
LA070URD33LI1000FUSE SQUARE 1KA 700VAC RECT |
3,967 | - |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
LA070URD33LI1250FUSE SQUARE 1.25KA 700VAC RECT |
4,245 | - |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1.25kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
PSR072FL0500ZFUSE SQUARE 500A 1.3KVAC/1KVDC |
7,325 | - |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|

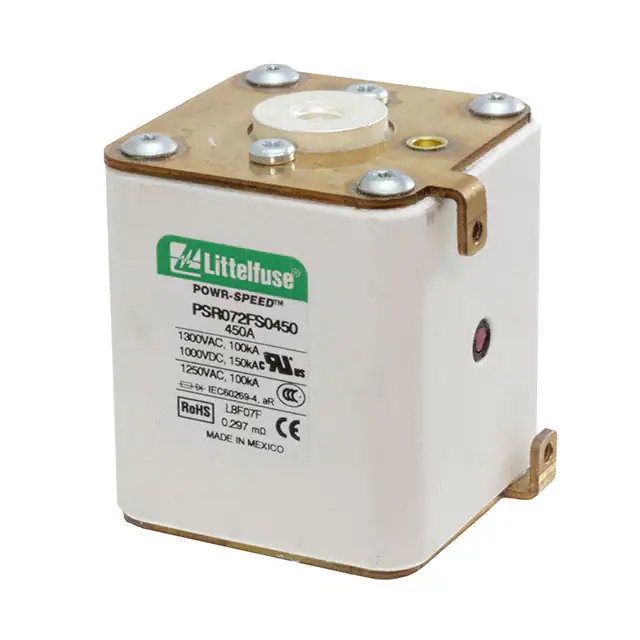

PSR072FS0450ZFUSE SQUARE 450A 1.3KVAC/1KVDC |
5,890 | - |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 450A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
