ELECTRONIC COMPONENTS
Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0SPF005.HXRFUSE CARTRIDGE 5A 1KVDC 5AG |
4,041 | - |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 5A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

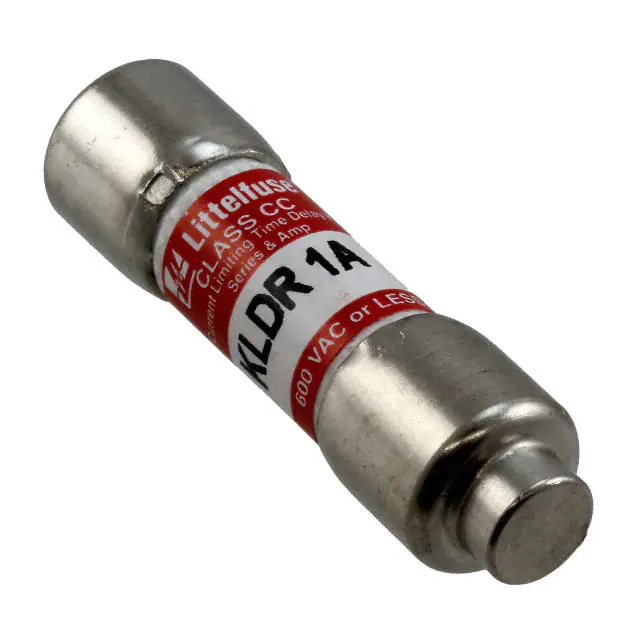

KLDR001.TXPFUSE CARTRIDGE 1A 600VAC/300VDC |
129 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR025.TXPFUSE CARTRIDGE 25A 600VAC/300VDC |
2,651 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 25A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

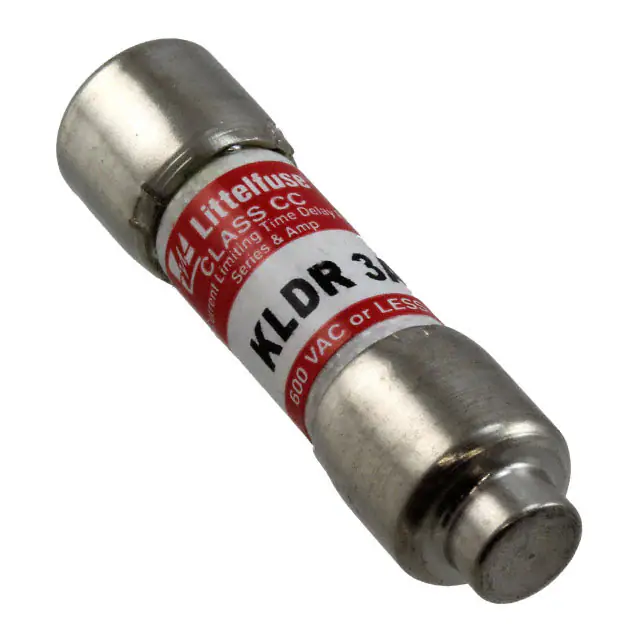

KLDR003.TXPFUSE CARTRIDGE 3A 600VAC/300VDC |
1,617 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 3A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
PV-15A10FFUSE CARTRIDGE 15A 1KVDC 5AG |
4,835 | - |
|
Datasheet | PV | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | CCC, CSA, UL | -40°C ~ 90°C | 50kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
KTK-R-2FUSE CARTRIDGE 2A 600VAC 5AG |
1,126 | - |
|
Datasheet | Limitron™ KTK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
PV-1A10FFUSE CARTRIDGE 1A 1KVDC 5AG |
2,643 | - |
|
Datasheet | PV | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | CCC, CSA, UL | -40°C ~ 90°C | 50kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
KTK-R-30FUSE CRTRDGE 30A 600VAC CYLINDER |
2,099 | - |
|
Datasheet | Limitron™ KTK-R | Cylinder | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KTK-15FUSE CARTRIDGE 15A 600VAC 5AG |
1,168 | - |
|
Datasheet | KTK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
HSJ40FUSE,CLASS J,HIGH SPEED,200KA AC |
1,567 | - |
|
Datasheet | HSJ | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 40A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.063" Dia x 2.362" L (27.00mm x 60.00mm) | - | - |
|
KLM-10FUSE CRTRDGE 10A 600VAC/VDC 5AG |
148 | - |
|
Datasheet | KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLM-5FUSE CARTRIDGE 5A 600VAC/VDC 5AG |
4,537 | - |
|
Datasheet | KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FNQ-R-10FUSE CARTRIDGE 10A 600VAC 5AG |
1,288 | - |
|
Datasheet | Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
PF-FB1-75FUSE BOLT MNT 800VAC 800VDC 75A |
4,920 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 75A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
|
PF-FB1-50FUSE BOLT MNT 800VAC 800VDC 50A |
4,894 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
JJS-60FUSE CARTRIDGE 60A 600VAC |
4,985 | - |
|
Datasheet | Limitron™ JJS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 60A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 0.810" Dia x 1.560" W (20.57mm x 39.62mm) | - | - |
|
LPJ-30SPFUSE CARTRIDGE 30A 600VAC/300VDC |
3,405 | - |
|
Datasheet | LOW-PEAK™ LPJ | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
|
PF-FB1-100FUSE BOLT MNT 800VAC 800VDC 100A |
2,896 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | - | - |
|
JJS-40FUSE CARTRIDGE 40A 600VAC |
4,362 | - |
|
Datasheet | Limitron™ JJS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 0.810" Dia x 1.560" W (20.57mm x 39.62mm) | - | - |
|

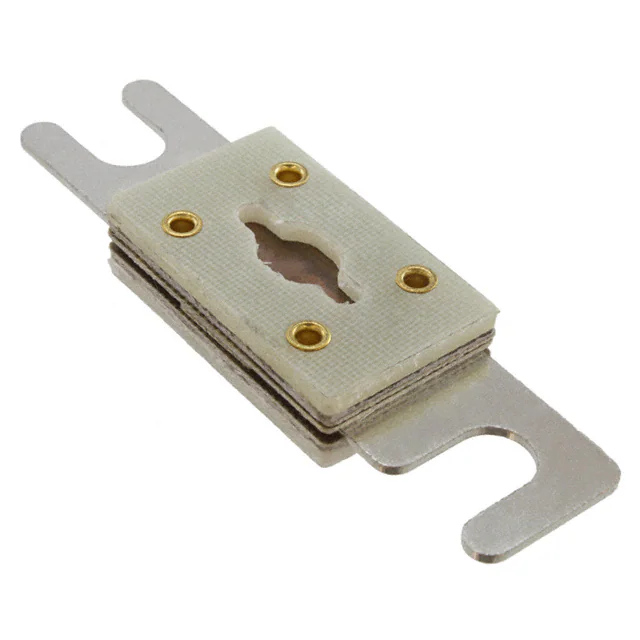

0CNN800E.VFUSE STRP 800A 125VAC/80VDC BOLT |
3,075 | - |
|
Datasheet | POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.5kA | - | - | - |
