ELECTRONIC COMPONENTS
CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCR3032XL-7CSG48IIC CPLD 32MC 7NS 48CSBGA |
2,397 | - |
|
Datasheet | CoolRunner XPLA3 | 48-FBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 7 ns | 2.7V ~ 3.6V | 2 | 32 | 750 | 36 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-CSBGA (7x7) |
|
XC2C64A-7CP56IIC CPLD 64MC 6.7NS 56CSBGA |
2,726 | - |
|
Datasheet | CoolRunner II | 56-LFBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable | 6.7 ns | 1.7V ~ 1.9V | 4 | 64 | 1500 | 45 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-CSBGA (6x6) |
|
XC9572XL-7VQ44CIC CPLD 72MC 7.5NS 44VQFP |
1,281 | - |
|
Datasheet | XC9500XL | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
|
XC2C64A-5VQ44CIC CPLD 64MC 4.6NS 44VQFP |
3,822 | - |
|
Datasheet | CoolRunner II | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 4.6 ns | 1.7V ~ 1.9V | 4 | 64 | 1500 | 33 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
XA9572XL-15VQG64QIC CPLD 72MC 15.5NS 64VQFP |
4,910 | - |
|
Datasheet | XA9500XL XA | 64-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 15.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 52 | -40°C ~ 105°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|

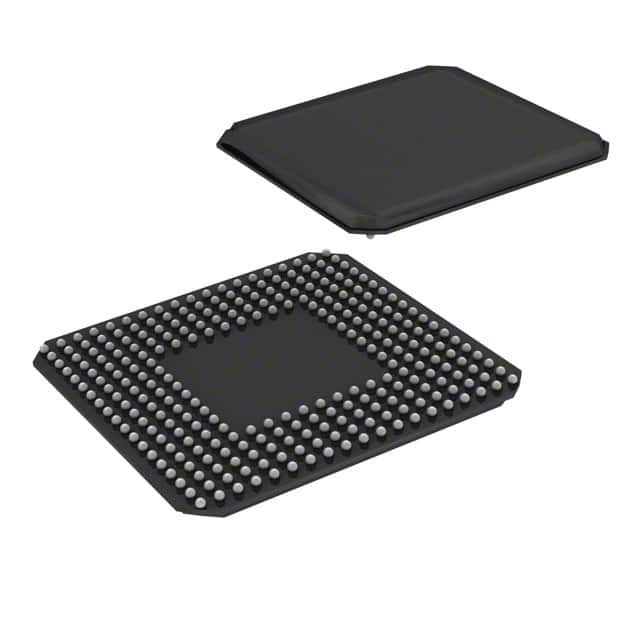

XC95288XV-10CS280CIC CPLD 288MC 10NS 280CSBGA |
4,084 | - |
|
Datasheet | XC9500XV | 280-TFBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.37V ~ 2.62V | 16 | 288 | 6400 | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 280-CSBGA (16x16) |
|
XCR3064XL-10VQG100CIC CPLD 64MC 9.1NS 100VQFP |
4,428 | - |
|
Datasheet | CoolRunner XPLA3 | 100-TQFP | Tray | Obsolete | Verified | In System Programmable (min 1K program/erase cycles) | 9.1 ns | 3V ~ 3.6V | 4 | 64 | 1500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-VQFP (14x14) |
|
|
XC9572XL-10CS48IIC CPLD 72MC 10NS 48CSBGA |
4,318 | - |
|
Datasheet | XC9500XL | 48-FBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 38 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-CSBGA (7x7) |
|
|
XC9572XL-10VQ64IIC CPLD 72MC 10NS 64VQFP |
3,304 | - |
|
Datasheet | XC9500XL | 64-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 52 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|
|
XC9572XL-10CSG48IIC CPLD 72MC 10NS 48CSBGA |
2,567 | - |
|
Datasheet | XC9500XL | 48-FBGA, CSPBGA | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 38 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-CSBGA (7x7) |
