ELECTRONIC COMPONENTS
CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

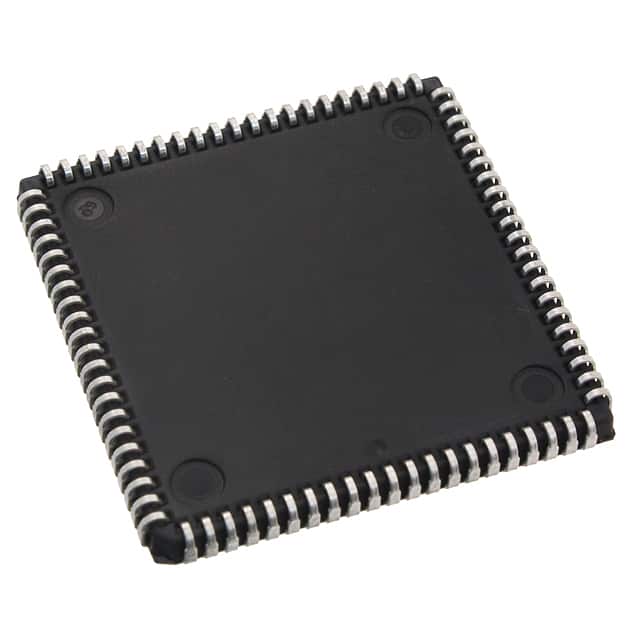

XC9572-15PCG84CIC CPLD 72MC 15NS 84PLCC |
2,177 | - |
|
Datasheet | XC9500 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
XC9572-15PQG100CIC CPLD 72MC 15NS 100QFP |
2,676 | - |
|
Datasheet | XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
XC9572-15TQG100CIC CPLD 72MC 15NS 100TQFP |
1,850 | - |
|
Datasheet | XC9500 | 100-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
XC9572-7PQG100CIC CPLD 72MC 7.5NS 100QFP |
4,224 | - |
|
Datasheet | XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | 4 | 72 | 1600 | 72 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
.jpg "XC9572XL-7PCG44C")
|
XC9572XL-7PCG44CIC CPLD 72MC 7.5NS 44PLCC |
2,567 | - |
|
Datasheet | XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
XC95108-15PCG84CIC CPLD 108MC 15NS 84PLCC |
3,164 | - |
|
Datasheet | XC9500 | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 69 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
XC95108-10PQG100CIC CPLD 108MC 10NS 100QFP |
3,122 | - |
|
Datasheet | XC9500 | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.75V ~ 5.25V | 6 | 108 | 2400 | 81 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
XC9572XL-10PCG44CIC CPLD 72MC 10NS 44PLCC |
1,117 | - |
|
Datasheet | XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 4 | 72 | 1600 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
XC9536XL-10PCG44CIC CPLD 36MC 10NS 44PLCC |
3,404 | - |
|
Datasheet | XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
XC9536XL-5PCG44CIC CPLD 36MC 5NS 44PLCC |
2,456 | - |
|
Datasheet | XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 5 ns | 3V ~ 3.6V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
