ELECTRONIC COMPONENTS
FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLA5086MOSFET 5P-CH 60V 5A 12SIP |
161 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Tube | Not For New Designs | MOSFET (Metal Oxide) | 5 P-Channel, Common Source | Logic Level Gate | 60V | 5A | 220mOhm @ 3A, 10V | 2V @ 250µA | - | 790pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SLA5065MOSFET 4N-CH 60V 7A 15ZIP |
722 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
SLA5068MOSFET 6N-CH 60V 7A 15ZIP |
352 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
|
SLA5064MOSFET 3N/3P-CH 60V 10A 12SIP |
972 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | Logic Level Gate | 60V | 10A | 140mOhm @ 5A, 4V | - | - | 460pF @ 10V, 1200pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

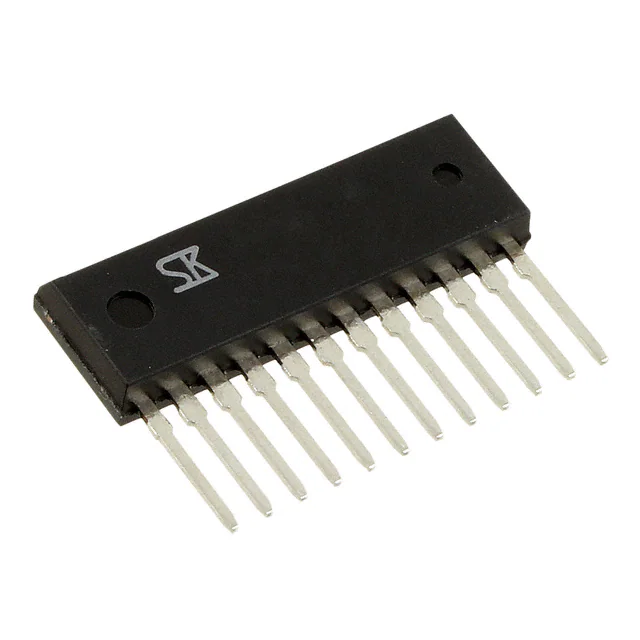

SMA5131MOSFET 6N-CH 250V 2A 12SIP |
2,321 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 250V | 2A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
|
SMA5133MOSFET 3N/3P-CH 500V 2.5A 12SIP |
4,247 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 500V | 2.5A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
|
SMA5132MOSFET 3N/3P-CH 500V 1.5A 12SIP |
1,656 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 500V | 1.5A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
SLA5065 LF830MOSFET 4N-CH 60V 7A 15SIP |
2,290 | - |
|
Datasheet | - | 15-SIP | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
SLA5201MOSFET 3N/3P-CH 600V 7A 15ZIP |
3,097 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 600V | 7A | - | - | - | - | - | - | - | - | Through Hole | 15-ZIP |
|
SPF0004MOSFET 2N-CH 275V 6A 20HSOP |
1,036 | - |
|
Datasheet | - | 20-PowerSOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 275V | 6A (Ta) | 260mOhm @ 6A, 10V | 2.6V @ 1mA | - | 960pF @ 10V | 2.5W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 20-HSOP |
