ELECTRONIC COMPONENTS
FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg "2N7008-G")
|
2N7008-GMOSFET N-CH 60V 230MA TO92-3 |
533 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±30V | 50 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TN2106N3-GMOSFET N-CH 60V 300MA TO92-3 |
428 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Tj) | 4.5V, 10V | 2.5Ohm @ 500mA, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 740mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
APT30M85BVRGMOSFET N-CH 300V 40A TO247 |
1,885 | - |
|
Datasheet | POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 40A (Tc) | 10V | 85mOhm @ 500mA, 10V | 4V @ 1mA | 195 nC @ 10 V | ±30V | 4950 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT1001RBVRGMOSFET N-CH 1000V 11A TO247 |
3,959 | - |
|
Datasheet | POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 11A (Tc) | - | 1Ohm @ 500mA, 10V | 4V @ 1mA | 225 nC @ 10 V | - | 3660 pF @ 25 V | - | - | - | - | - | Through Hole | TO-247 [B] |
|
|
APT6025BVRGMOSFET N-CH 600V 25A TO247 |
2,822 | - |
|
Datasheet | POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | - | 250mOhm @ 500mA, 10V | 4V @ 1mA | 275 nC @ 10 V | - | 5160 pF @ 25 V | - | - | - | - | - | Through Hole | TO-247 [B] |
|
APT37M100LMOSFET N-CH 1000V 37A TO264 |
3,455 | - |
|
Datasheet | - | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 330mOhm @ 18A, 10V | 5V @ 2.5mA | 305 nC @ 10 V | ±30V | 9835 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 |
|

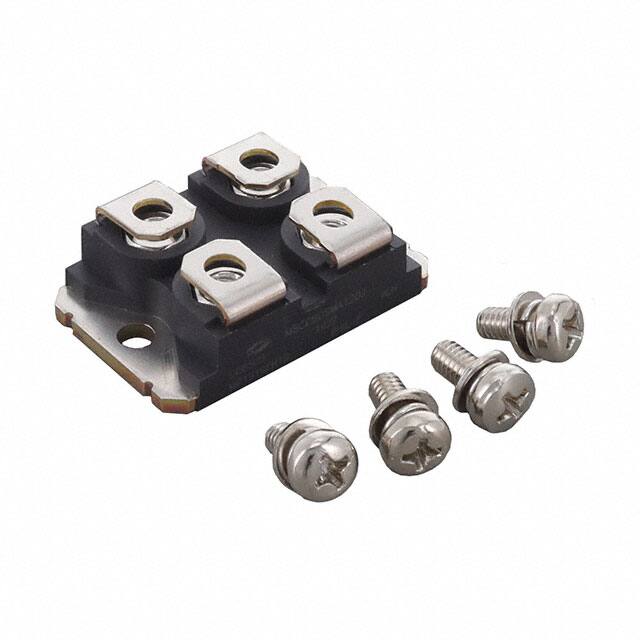

MSC080SMA120JSICFET N-CH 1.2KV 35A SOT227 |
3,889 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 37A (Tc) | - | - | - | - | - | - | - | - | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
APT5010JVRU2MOSFET N-CH 500V 44A SOT227 |
1,532 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 100mOhm @ 22A, 10V | 4V @ 2.5mA | 312 nC @ 10 V | ±30V | 7410 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
MSC015SMA070B4TRANS SJT N-CH 700V 140A TO247-4 |
2,151 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 140A (Tc) | 20V | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215 nC @ 20 V | +23V, -10V | 4500 pF @ 700 V | - | 455W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
APT8030JVFRMOSFET N-CH 800V 25A ISOTOP |
2,893 | - |
|
Datasheet | POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 25A (Tc) | - | 300mOhm @ 500mA, 10V | 4V @ 2.5mA | 510 nC @ 10 V | - | 7900 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
