ELECTRONIC COMPONENTS
FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STFI31N65M5MOSFET N CH 650V 22A I2PAKFP |
1,479 | - |
|
Datasheet | MDmesh™ V | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 148mOhm @ 11A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1865 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-281 (I2PAKFP) |
|
STF120NF10MOSFET N-CH 100V 41A TO220FP |
711 | - |
|
Datasheet | STripFET™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 41A (Tc) | 10V | 10.5mOhm @ 60A, 10V | 4V @ 250µA | 233 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220FP |
|
STB13NK60ZT4MOSFET N-CH 600V 13A D2PAK |
653 | - |
|
Datasheet | SuperMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
STP52N25M5MOSFET N-CH 250V 28A TO220 |
551 | - |
|
Datasheet | MDmesh™ V | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 28A (Tc) | 10V | 65mOhm @ 14A, 10V | 5V @ 100µA | 47 nC @ 10 V | ±25V | 1770 pF @ 50 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STI18N65M5MOSFET N CH 650V 15A I2PAK |
348 | - |
|
Datasheet | MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 220mOhm @ 7.5A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1240 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|

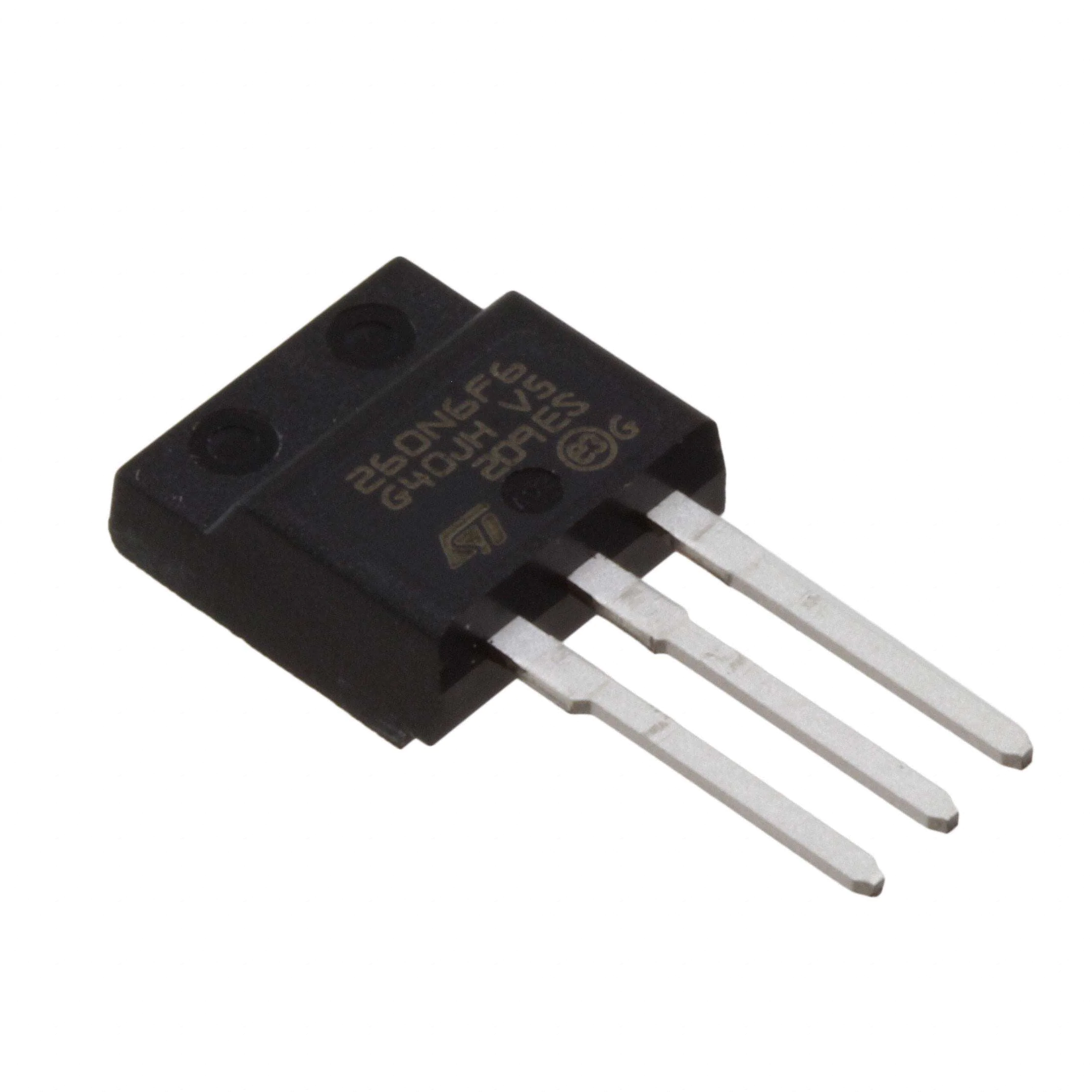

STFI260N6F6MOSFET N-CH 60V 80A I2PAKFP |
297 | - |
|
Datasheet | DeepGATE™, STripFET™ VI | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 3mOhm @ 60A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±20V | 11400 pF @ 25 V | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAKFP (TO-281) |
|
|
STI40N65M2MOSFET N-CH 650V 32A I2PAK |
811 | - |
|
Datasheet | MDmesh™ M2 | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 99mOhm @ 16A, 10V | 4V @ 250µA | 56.5 nC @ 10 V | ±25V | 2355 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
STL24NM60NMOSFET N-CH 600V 16A POWERFLAT |
6,957 | - |
|
Datasheet | MDmesh™ II | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.3A (Ta), 16A (Tc) | 10V | 215mOhm @ 8A, 10V | 5V @ 250µA | 46 nC @ 10 V | ±25V | 1400 pF @ 50 V | - | 3W (Ta), 125W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|
|
STI270N4F3MOSFET N-CH 40V 160A I2PAK |
883 | - |
|
Datasheet | STripFET™ III | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.6mOhm @ 80A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 7400 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
|
STFI130N10F3MOSFET N-CH 100V 46A I2PAKFP |
1,500 | - |
|
Datasheet | STripFET™ III | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 46A (Tc) | 10V | 9.6mOhm @ 23A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±20V | 3305 pF @ 25 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-281 (I2PAKFP) |
