ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463I310000M1KCAP FILM 0.1UF 10% 630VDC RADIAL |
3,163 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413I21000000MCAP FILM 10000PF 20% 1KVDC RAD |
6,686 | - |
|
Datasheet | Radial | 10000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R463I310050M1KCAP FILM 0.1UF 10% 630VDC RADIAL |
1,930 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413F147000M1MCAP FILM 4700PF 20% 1KVDC RADIAL |
2,635 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R76MI31005050JFILM, RADIAL, PULSE, DOUBLE META |
2,750 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R82EC3680DQ70KCAP FILM 0.68UF 10% 100VDC RAD |
11,840 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R75UI11004040JCAP FILM 1000PF 5% 2KVDC RADIAL |
3,454 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

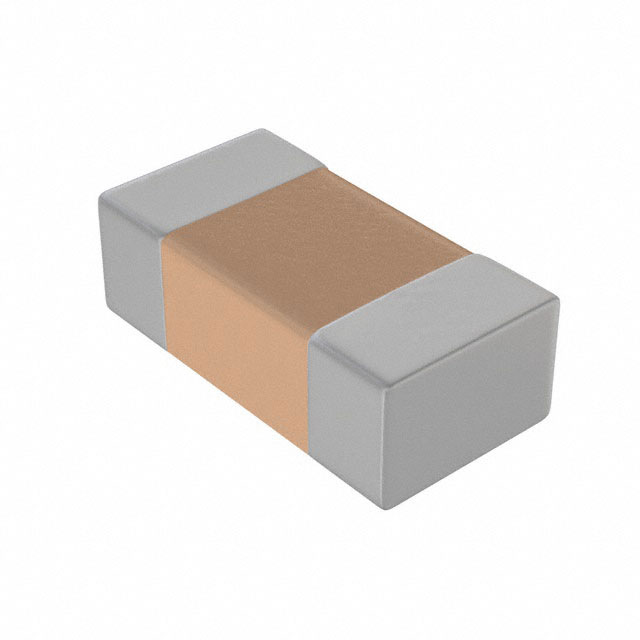

LDECA2330KA0N00CAP FILM 0.033UF 10% 50VDC 1206 |
2,166 | - |
|
Datasheet | 1206 (3216 Metric) | 0.033 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE850EA4470MA03R17T0CAP FILM 4700PF 20% 1.25KVDC RAD |
6,866 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
R413F147050M1MCAP FILM 4700PF 20% 1KVDC RADIAL |
1,596 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
