ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

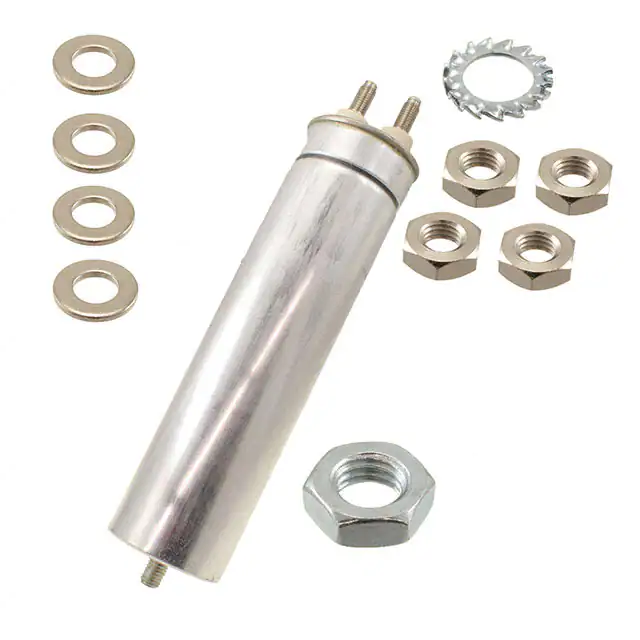

C44PPGR6150RASKCAP FILM 150UF 10% 1.28KVDC RAD |
8,566 | - |
|
Datasheet | Radial, Can | 150 µF | ±10% | 550V | 1280V (1.28kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.740" Dia (95.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44UOGQ6370F8SKCAP POLYPROP FILM CAN |
6,800 | - |
|
Datasheet | Radial, Can | 370 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.819" (97.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C9TSABD5385AA0XCAP FILM SCRW TERM |
3,295 | - |
|
Datasheet | Radial, Can | 38.5 µF | -5%, +10% | 525V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C9TS5BD5616AA0XCAP FILM SCRW TERM |
4,234 | - |
|
Datasheet | Radial, Can | 61.6 µF | -5%, +10% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44UOEQ6510F8SKCAP POLYPROP FILM CAN |
8,793 | - |
|
Datasheet | Radial, Can | 510 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 90°C | Chassis Mount | 3.346" Dia (85.00mm) | 4.803" (122.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C9TS6BD5524AA0XCAP FILM SCRW TERM |
5,797 | - |
|
Datasheet | Radial, Can | 52.4 µF | -5%, +10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44UUGQ6195F7SKCAP POLYPROP FILM CAN |
8,047 | - |
|
Datasheet | Radial, Can | 195 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.591" (142.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UJET6425A7SKCAP POLYPROP FILM CAN |
8,729 | - |
|
Datasheet | Radial, Can | 425 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 90°C | Chassis Mount | 2.992" Dia (76.00mm) | 5.591" (142.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UJET6350A7SKCAP POLYPROP FILM CAN |
8,029 | - |
|
Datasheet | Radial, Can | 350 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 90°C | Chassis Mount | 2.992" Dia (76.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UJGT6450A8SKCAP POLYPROP FILM CAN |
5,722 | - |
|
Datasheet | Radial, Can | 450 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
