ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

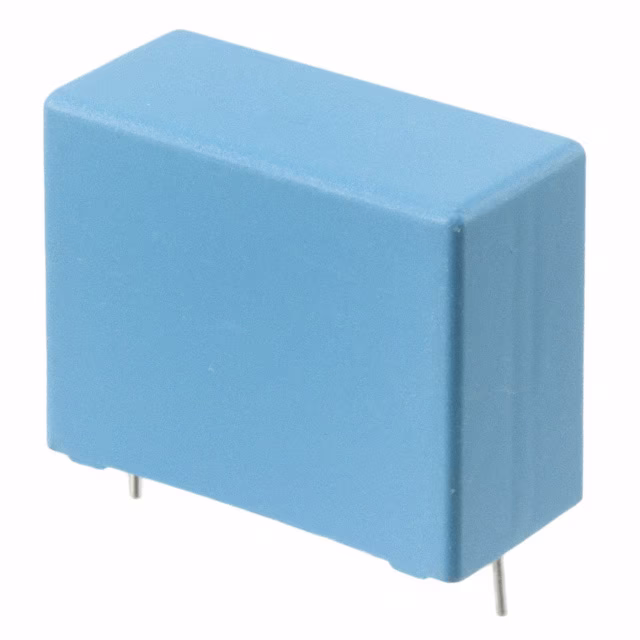

PHE820EF6680MR06L2CAP FILM 0.68UF 20% 300VAC RAD |
8,991 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
A72QT3100AA02MCAP FILM 0.1UF 20% 1KVDC AXIAL |
3,852 | - |
|
Datasheet | Axial | 0.1 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.299" L (19.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

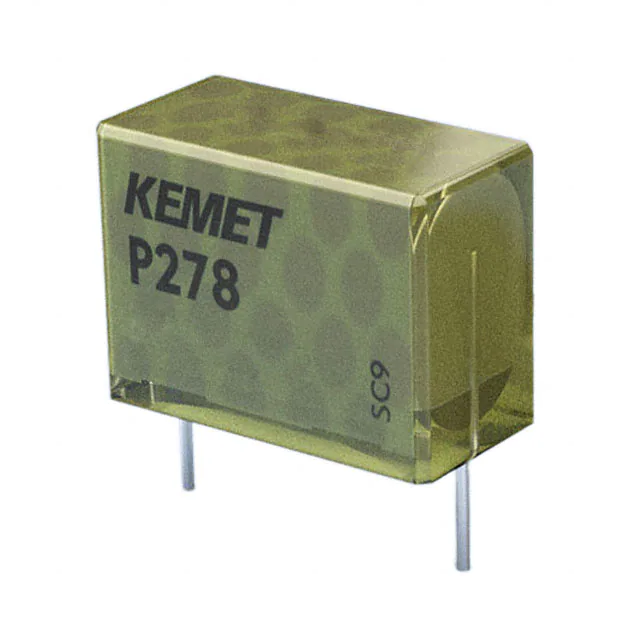

P278HE222M480ACAP FILM 2200PF 20% 480VAC RAD |
2,350 | - |
|
Datasheet | Radial | 2200 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X1 | - |
|
|
P278QS223M480ACAP FILM 0.022UF 20% 1KVDC RAD |
6,197 | - |
|
Datasheet | Radial | 0.022 µF | ±20% | 480V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X1 | - |
|
|
P278SJ473M480ACAP FILM 0.047UF 20% 480VAC RAD |
5,934 | - |
|
Datasheet | Radial | 0.047 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
PME271ED6220KR30CAP FILM 0.22UF 10% 630VDC RAD |
6,690 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 300V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.453" W (27.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R75MD247040B0JCAP FILM 0.047UF 5% 400VDC RAD |
5,371 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75LN33304000KCAP FILM 0.33UF 10% 560VDC RAD |
4,789 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
R75LN35604000KCAP FILM 0.56UF 10% 560VDC RAD |
5,830 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
R75LN38204000KCAP FILM 0.82UF 10% 560VDC RAD |
4,783 | - |
|
Datasheet | Radial | 0.82 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
