ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76QI210050H4JCAP FILM 10000PF 5% 1KVDC RAD |
3,640 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 191 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R413F12205000MCAP FILM 2200PF 20% 1KVDC RADIAL |
3,439 | - |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R75UI127050H4JCAP FILM 2700PF 5% 2KVDC RADIAL |
3,270 | - |
|
Datasheet | Radial | 2700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 294.7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I24705001KCAP FILM 0.047UF 10% 630VDC RAD |
1,961 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413F11005000KCAP FILM 1000PF 10% 1KVDC RADIAL |
1,750 | - |
|
Datasheet | Radial | 1000 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R413I14700000MCAP FILM 4700PF 20% 1KVDC RADIAL |
1,417 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

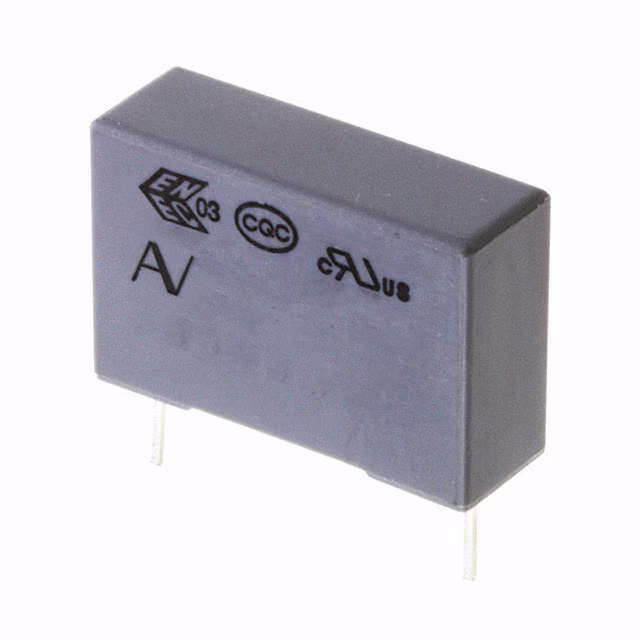

R46KI315000M2KCAP FILM 0.15UF 10% 560VDC RAD |
1,376 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413F168050T0KCAP FILM 6800PF 10% 1.5KVDC RAD |
1,147 | - |
|
Datasheet | Radial | 6800 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R463I21005001KCAP FILM 10000PF 10% 630VDC RAD |
3,475 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76PI23305050JFILM, RADIAL, PULSE, DOUBLE META |
2,711 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
