ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F462BB332R1K6CCAP |
5,694 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

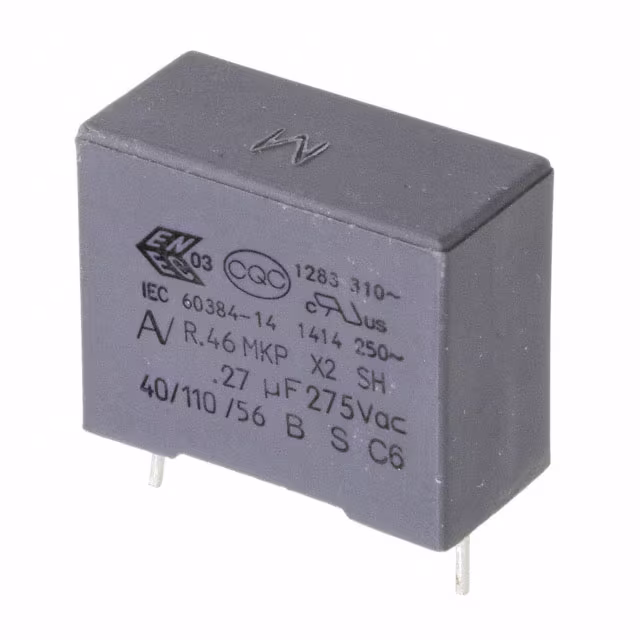

R46KI327000N0MCAP FILM 0.27UF 20% 560VDC RAD |
4,231 | - |
|
Datasheet | Radial | 0.27 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F462BB332K1K6CCAP FILM POLYPROP RAD |
8,051 | - |
|
Datasheet | Radial | 3300 pF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
F461BB223J630CCAP FILM POLYPROP RAD |
3,288 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
R82EC3680SH70JCAP FILM |
6,288 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R745I13904000JCAP FILM METAL RAD POLYPROP |
3,578 | - |
|
Datasheet | Radial | 3900 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 163 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KI2100CK01MCAP FILM SAFETY/EMI SUPP RAD |
5,028 | - |
|
Datasheet | Radial | 10000 pF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R745I1390JM00JCAP FILM METAL RAD POLYPROP |
4,404 | - |
|
Datasheet | Radial | 3900 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 163 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R60PF2150406AJCAP FILM AUTOMOTIVE |
4,938 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
F461KJ223J630LCAP FILM POLYPROP RAD |
9,478 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
