ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB017D0103JBACAP FILM 10000PF 5% 63VDC 1206 |
3,804 | - |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.045" (1.15mm) | Solder Pads | - | General Purpose | - | - |
|
CB027D0473JBACAP FILM 0.047UF 5% 63VDC 1210 |
12,453 | - |
|
Datasheet | 1210 (3225 Metric) | 0.047 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.071" (1.80mm) | Solder Pads | - | General Purpose | - | - |
|

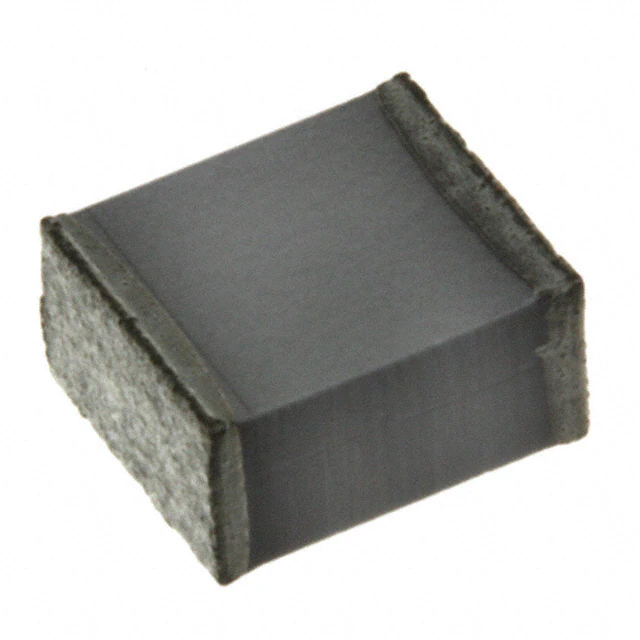

CB042D0474JBCCAP FILM 0.47UF 5% 63VDC 2220 |
10,061 | - |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | - |
|
|
CB027C0104JBACAP FILM 0.1UF 5% 25VDC 1210 |
5,398 | - |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±5% | 16V | 25V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.071" (1.80mm) | Solder Pads | - | General Purpose | - | - |
|
|
CB047G0333JBCCAP FILM 0.033UF 5% 250VDC 2220 |
5,494 | - |
|
Datasheet | 2220 (5750 Metric) | 0.033 µF | ±5% | 160V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
|
CB042K0103KBCCAP FILM 10000PF 10% 630VDC 2220 |
12,992 | - |
|
Datasheet | 2220 (5750 Metric) | 10000 pF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | General Purpose | - | Low ESR |
-2,80mm.jpg "CB037E0104JBA")
|
CB037E0104JBACAP FILM 0.1UF 5% 100VDC 1812 |
3,433 | - |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
CB037D0224JBACAP FILM 0.22UF 5% 63VDC 1812 |
7,077 | - |
|
Datasheet | 1812 (4532 Metric) | 0.22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
CB042D0684JBCCAP FILM 0.68UF 5% 63VDC 2220 |
2,531 | - |
|
Datasheet | 2220 (5750 Metric) | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
CB047D0684JBCCAP FILM |
936 | - |
|
Datasheet | 2220 (5750 Metric) | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.154" (3.90mm) | Solder Pads | - | General Purpose | - | - |
