ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2395KFCAP FILM 3.9UF 10% 250VDC RADIAL |
2,790 | - |
|
Datasheet | Radial | 3.9 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-HA3C473JCAP FILM 0.047UF 5% 1.6KVDC RAD |
106 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811" L x 0.528" W (20.60mm x 13.40mm) | 0.756" (19.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|

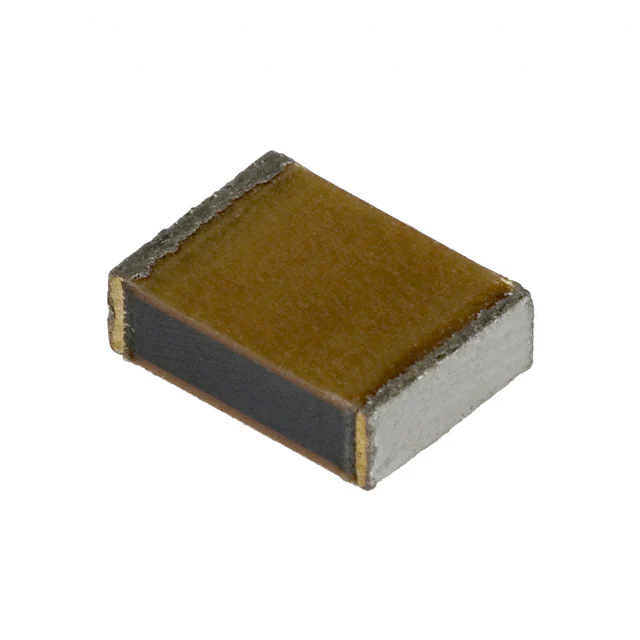

ECH-U1473JC9CAP FILM 0.047UF 5% 100VDC 2416 |
5,255 | - |
|
Datasheet | 2416 (6041 Metric) | 0.047 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E1335JFCAP FILM 3.3UF 5% 100VDC RADIAL |
255 | - |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-F6103JLCAP FILM 10000PF 5% 630VDC RAD |
1,323 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.205" W (12.50mm x 5.20mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3F103JDCAP FILM 10000PF 5% 3KVDC RADIAL |
1,230 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.323" W (25.80mm x 8.20mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-F6304JLCAP FILM 0.3UF 5% 630VDC RADIAL |
993 | - |
|
Datasheet | Radial | 0.3 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.429" W (20.50mm x 10.90mm) | 0.736" (18.70mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
ECQ-E6474JFCAP FILM 0.47UF 5% 630VDC RADIAL |
1,000 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.366" W (26.00mm x 9.30mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
ECW-F6203JLCAP FILM 0.02UF 5% 630VDC RADIAL |
963 | - |
|
Datasheet | Radial | 0.02 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.425" (10.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-H6104HCCAP FILM 0.1UF 3% 630VDC RADIAL |
123 | - |
|
Datasheet | Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.339" W (20.70mm x 8.60mm) | 0.591" (15.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
