ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4105JLCAP FILM 1UF 5% 400VDC RADIAL |
893 | - |
|
Datasheet | Radial | 1 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.512" W (23.00mm x 13.00mm) | 0.839" (21.30mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F4684JBCAP FILM 0.68UF 5% 400VDC RADIAL |
331 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

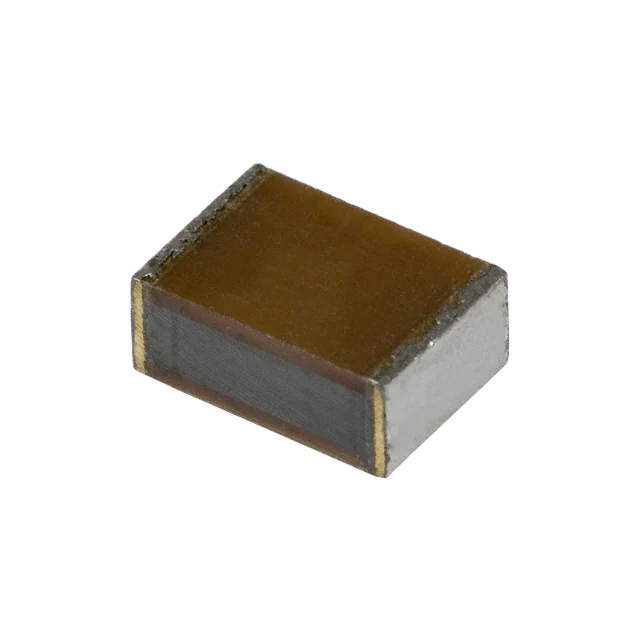

ECH-U1104JC9CAP FILM 0.1UF 5% 100VDC 2820 |
2,142 | - |
|
Datasheet | 2820 (7150 Metric) | 0.1 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-H12104JVCAP FILM 0.1UF 5% 1.25KVDC RAD |
909 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 1.004" (25.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2825JFCAP FILM 8.2UF 5% 250VDC RADIAL |
741 | - |
|
Datasheet | Radial | 8.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECQ-E6225KFCAP FILM 2.2UF 10% 630VDC RADIAL |
521 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
 Series Straight 23x11.jpg "ECW-F2395JA")
|
ECW-F2395JACAP FILM 3.9UF 5% 250VDC RADIAL |
2,068 | - |
|
Datasheet | Radial | 3.9 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.531" W (23.80mm x 13.50mm) | 0.819" (20.80mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
ECQ-E1106KFBCAP FILM 10UF 10% 100VDC RADIAL |
1,598 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" (26.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

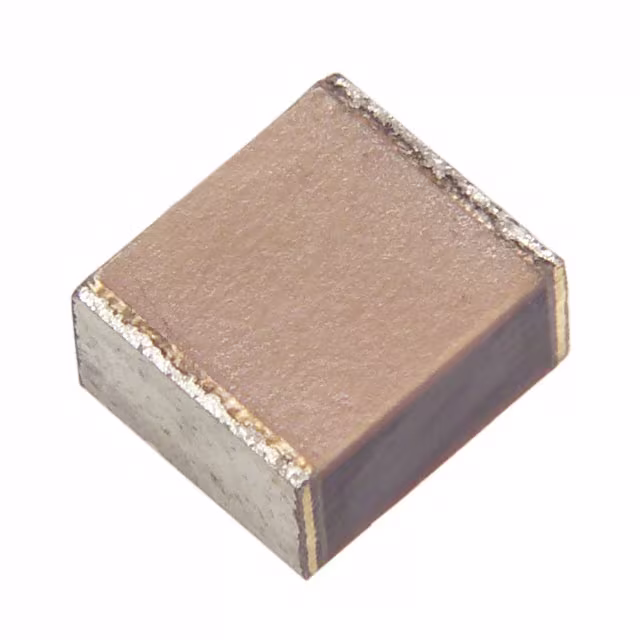

ECH-U1224GCVCAP FILM 0.22UF 2% 100VDC 2825 |
2,824 | - |
|
Datasheet | 2825 (7163 Metric) | 0.22 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-F4205HLCAP FILM 2UF 3% 400VDC RADIAL |
617 | - |
|
Datasheet | Radial | 2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.969" (24.60mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for Film Capacitors?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
