ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

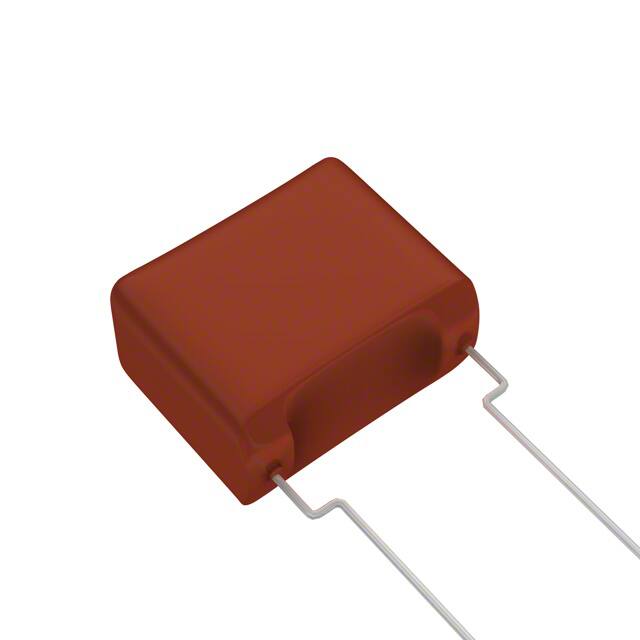

 Series Style B 18x12.jpg "ECW-FA2J684JB")
|
ECW-FA2J684JBCAP FILM 0.68UF 5% 630VDC RADIAL |
3,545 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 0.870" (22.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
ECH-U1H473JC9CAP FILM 0.047UF 5% 50VDC 1913 |
8,779 | - |
|
Datasheet | 1913 (4833 Metric) | 0.047 µF | ±5% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UBAF334MACAP FILM 0.33UF 20% 300VAC RADIA |
3,618 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
ECW-H12122HVCAP FILM 1200PF 3% 1.25KVDC RAD |
5,701 | - |
|
Datasheet | Radial | 1200 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12112HVCAP FILM 1100PF 3% 1.25KVDC RAD |
7,543 | - |
|
Datasheet | Radial | 1100 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12132HVCAP FILM 1300PF 3% 1.25KVDC RAD |
2,612 | - |
|
Datasheet | Radial | 1300 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12102HVCAP FILM 1000PF 3% 1.25KVDC RAD |
4,433 | - |
|
Datasheet | Radial | 1000 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12242JVBCAP FILM 2400PF 5% 1.25KVDC RAD |
6,111 | - |
|
Datasheet | Radial | 2400 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12222JVBCAP FILM 2200PF 5% 1.25KVDC RAD |
5,875 | - |
|
Datasheet | Radial | 2200 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
ECW-FD2J125KBCAP FILM 1.2UF 10% 630VDC RADIAL |
6,763 | - |
|
Datasheet | Radial | 1.2 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.362" W (25.30mm x 9.20mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
