ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R82EC3100SH70JCAP FILM 0.1UF 5% 100VDC RADIAL |
29,995 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82EC2470DQ60KCAP FILM 0.047UF 10% 100VDC RAD |
12,826 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82EC2220DQ50KCAP FILM 0.022UF 10% 100VDC RAD |
9,864 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MMK5103J100J01L4BULKCAP FILM 10000PF 5% 100VDC RAD |
8,399 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
R82MC1100DQ50JCAP FILM 1000PF 5% 400VDC RADIAL |
6,646 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
F339X121048MDA2B0CAP FILM 1000PF 20% 1KVDC RADIAL |
3,272 | - |
|
Datasheet | Radial | 1000 pF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|

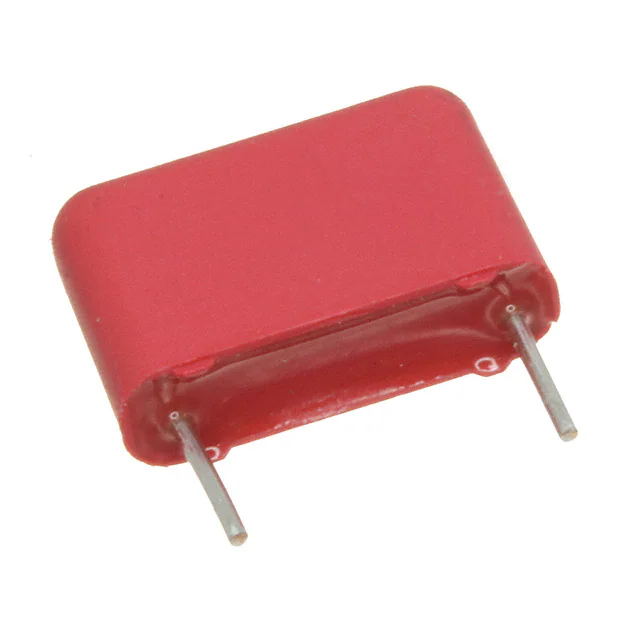

MKP1G021003C00KSSDCAP FILM 10000PF 10% 400VDC RAD |
2,827 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
B32529C3103K289CAP FILM 10000PF 10% 250VDC RAD |
2,447 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32529C1104J189CAP FILM 0.1UF 5% 100VDC RADIAL |
50,213 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32529C0103J289CAP FILM 10000PF 5% 63VDC RADIAL |
17,504 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32529C0683J289CAP FILM 0.068UF 5% 63VDC RADIAL |
17,346 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32529C0332J289CAP FILM 3300PF 5% 63VDC RADIAL |
14,493 | - |
|
Datasheet | Radial | 3300 pF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32529C1122J289CAP FILM 1200PF 5% 100VDC RADIAL |
11,106 | - |
|
Datasheet | Radial | 1200 pF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
MMK5273J63J01L16.5TR18CAP FILM 0.027UF 5% 63VDC RADIAL |
6,558 | - |
|
Datasheet | Radial | 0.027 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
B32529C1683J189CAP FILM 0.068UF 5% 100VDC RAD |
6,049 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
890324023015CSCAP FILM 0.047UF 10% 275VAC RAD |
5,883 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.177" W (13.00mm x 4.50mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32529C0154J289CAP FILM 0.15UF 5% 63VDC RADIAL |
5,746 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.098" W (7.30mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECH-U1C391GX5CAP FILM 390PF 2% 16VDC 0603 |
5,641 | - |
|
Datasheet | 0603 (1608 Metric) | 390 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
|
890324023006CSCAP FILM 10000PF 10% 275VAC RAD |
5,391 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R82EC2680DQ60JCAP FILM 0.068UF 5% 100VDC RAD |
2,914 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
