ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP386M422250JT3CAP FILM 0.22UF 5% 2.5KVDC SCREW |
3,101 | - |
|
Datasheet | Rectangular Box | 0.22 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
|
MKP386M482160JT3CAP FILM 0.82UF 5% 1.6KVDC SCREW |
7,405 | - |
|
Datasheet | Rectangular Box | 0.82 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|

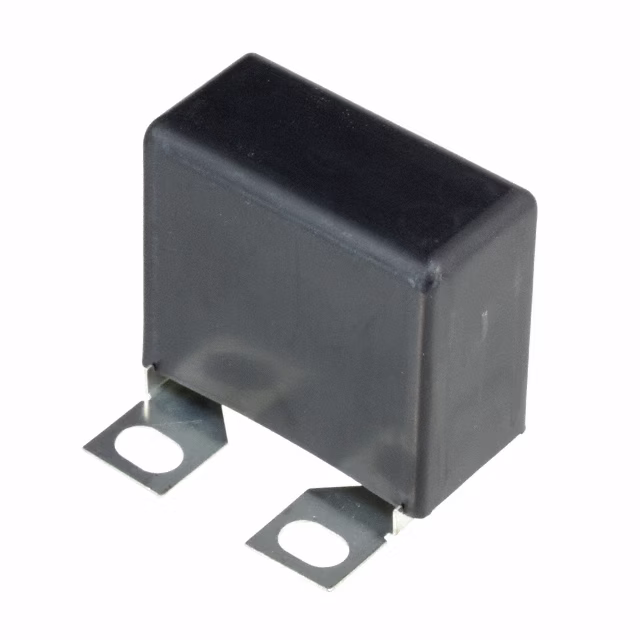

MKP386M510125JT4CAP FILM 1UF 5% 1.25KVDC SCREW |
3,348 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | - | Low ESR |
|
MKP1848H67550JY2CAP FILM 75UF 5% 500VDC RADIAL |
8,570 | - |
|
Datasheet | Radial | 75 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
BFC238622335CAP FILM 3.3UF 10% 630VDC SCREW |
7,433 | - |
|
Datasheet | Rectangular Box | 3.3 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 6 mOhms | -50°C ~ 85°C | Chassis Mount | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 1.811" (46.00mm) | Screw Terminals | 0.894" (22.70mm) | Snubber | - | Long Life |
|
|
BFC238680824CAP FILM 0.82UF 1.25KVDC SCREW |
9,329 | - |
|
Datasheet | Rectangular Box | 0.82 µF | ±10% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -50°C ~ 85°C | Chassis Mount | 1.319" L x 0.866" W (33.50mm x 22.00mm) | 1.201" (30.50mm) | Screw Terminals | 0.894" (22.70mm) | Snubber | - | Long Life |
|
MKP386M540070JT1CAP FILM 4UF 5% 700VDC SCREW |
2,128 | - |
|
Datasheet | Rectangular Box | 4 µF | ±5% | 420V | 700V | Polypropylene (PP), Metallized | 4.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 1.811" (46.00mm) | Screw Terminals | 0.402" (10.20mm) | Snubber | - | Low ESR |
|
MKP386M468125JT5CAP FILM 0.68UF 5% 1.25KVDC SCRW |
3,125 | - |
|
Datasheet | Rectangular Box | 0.68 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Chassis Mount | 1.319" L x 0.866" W (33.50mm x 22.00mm) | - | Screw Terminals | 0.886" (22.50mm) | Snubber | - | Low ESR |
|
|
MKP386M482125JT6CAP FILM 0.82UF 5% 1.25KVDC SCRW |
7,240 | - |
|
Datasheet | Rectangular Box | 0.82 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | 0.433" (11.00mm) | Snubber | - | Low ESR |
|
|
MKP386M482125JT8CAP FILM 0.82UF 5% 1.25KVDC SCRW |
8,826 | - |
|
Datasheet | Rectangular Box | 0.82 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | 0.433" (11.00mm) | Snubber | - | Low ESR |
