ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C276CCF5250LG0JCAP FILM 25UF 5% 470VAC RADIAL |
197 | - |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
C4AQJBW5500M3OJCAP FILM 50UF 5% 700VDC RADIAL |
121 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
FFB14D0336K--CAP FILM 33UF 10% 75VDC RADIAL |
490 | - |
|
Datasheet | Radial | 33 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 0.882" (22.40mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
C4ATDBW5300A30JCAP FILM 30UF 5% 250VDC RADIAL |
150 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4ATFBW5200A3LJCAP FILM 20UF 5% 400VDC RADIAL |
224 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

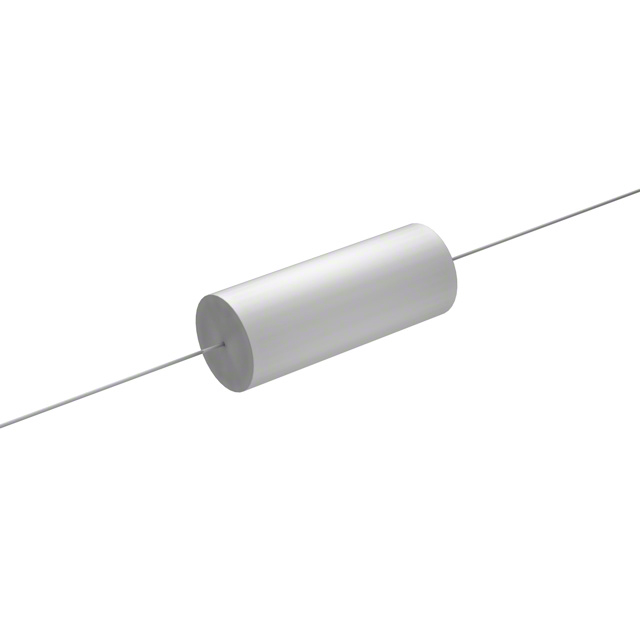

MMWA4W2K-FCAP FILM 2UF 10% 400VDC AXIAL |
380 | - |
|
Datasheet | Axial | 2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.669" Dia x 1.748" L (17.00mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
|
C4BSYBX3330ZALJCAP FILM 0.33UF 5% 3KVDC SCREW |
122 | - |
|
Datasheet | Rectangular Box | 0.33 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
B32678G3476K000CAP FILM 47UF 10% 300VDC RADIAL |
179 | - |
|
Datasheet | Radial | 47 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32718H5806K000MKP DC FILTERING - 500VDC, 80UF |
499 | - |
|
Datasheet | Radial - 4 Leads | 80 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
C4ATHBW5200A3NJCAP FILM 20UF 5% 600VDC RADIAL |
289 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
224PPA302KSCAP FILM 0.22UF 10% 3KVDC AXIAL |
107 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -55°C ~ 85°C | Through Hole | 1.142" Dia x 2.323" L (29.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C878BF35460SA0JCAP FILM 46UF 5% 470VAC RADIAL |
112 | - |
|
Datasheet | Radial, Can | 46 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C276CCF5300LG0JCAP FILM 30UF 5% 470VAC RADIAL |
187 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
PMB2124200KVRCAP FILM 2UF 10% 1.2KVDC SCREW |
418 | - |
|
Datasheet | Rectangular Box | 2 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32758G7556K000CAP FILM 55UF 10% 560VDC RADIAL |
210 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | - |
|
MKP386M530125YT4CAP FILM 3UF 5% 1.25KVDC SCREW |
185 | - |
|
Datasheet | Rectangular Box | 3 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 0.984" W (58.00mm x 25.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
940C20P56K-FCAP FILM 0.56UF 10% 2KVDC AXIAL |
321 | - |
|
Datasheet | Axial | 0.56 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.220" Dia x 2.126" L (31.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FFB56L0475K--CAP FILM 4.7UF 10% 1.1KVDC RAD |
136 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 180V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
940C16P68K-FCAP FILM 0.68UF 1.6KVDC AXIAL |
126 | - |
|
Datasheet | Axial | 0.68 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.280" Dia x 1.811" L (32.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
C878BG35600SA0JCAP FILM 60UF 5% 470VAC RADIAL |
363 | - |
|
Datasheet | Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
