ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F340Y241530JIM2T0CAP FILM 0.15UF 5% 1KVDC RAD |
2,214 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
F340Y241530JIP2T0CAP FILM 0.15UF 5% 1KVDC RAD |
8,977 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
MKP1840468256CAP FILM 0.68UF 20% RADIAL |
4,244 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

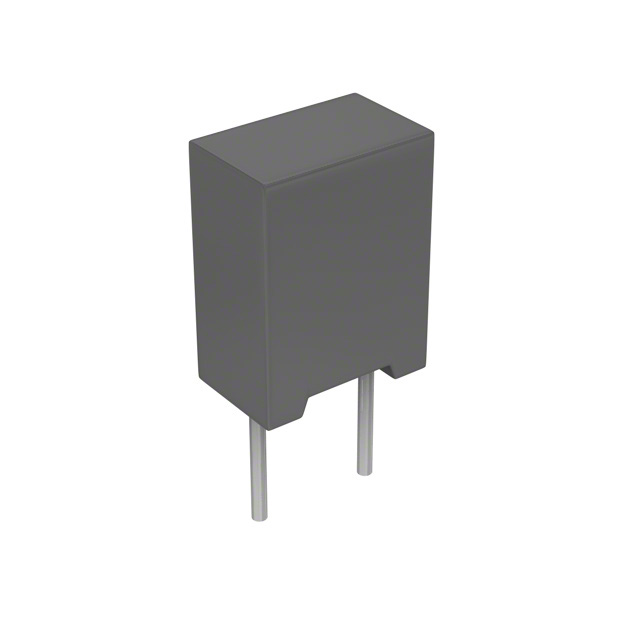

185684J63RFA-FCAP FILM 0.68UF 5% 63VDC RADIAL |
8,289 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
185684J63RFB-FCAP FILM 0.68UF 5% 63VDC RADIAL |
2,714 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
F461DY185R400R1.80UF 400V |
2,702 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F881DU254K300LCAP FILM POLYPROP RAD Y2 |
3,370 | - |
|
Datasheet | Radial | 0.25 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
MKX14W35606D00JH00MKP-X1 R 0.56 F 440 VAC 13X24X31 |
6,746 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKX14W35606D00JJ00MKP-X1 R 0.56 F 440 VAC 13X24X31 |
5,620 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMK22.5225K250D15L4TRAYCAP FILM RAD |
5,860 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP385510016JI02W0CAP FILM 1UF 5% 160VDC RADIAL |
2,442 | - |
|
Datasheet | Radial | 1 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F461FB824J400ZCAP FILM POLYPROP RAD |
8,632 | - |
|
Datasheet | Radial | 0.82 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.669" (17.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
MKP1839047635CAP FILM 47PF 10% 630VDC AXIAL |
9,834 | - |
|
Datasheet | Axial | 47 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839047635RCAP FILM 47PF 10% 630VDC AXIAL |
5,273 | - |
|
Datasheet | Axial | 47 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839051635CAP FILM 51PF 10% 630VDC AXIAL |
2,866 | - |
|
Datasheet | Axial | 51 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839051635RCAP FILM 51PF 10% 630VDC AXIAL |
4,511 | - |
|
Datasheet | Axial | 51 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839056635CAP FILM 56PF 10% 630VDC AXIAL |
3,959 | - |
|
Datasheet | Axial | 56 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839056635RCAP FILM 56PF 10% 630VDC AXIAL |
4,262 | - |
|
Datasheet | Axial | 56 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839062635CAP FILM 62PF 10% 630VDC AXIAL |
7,431 | - |
|
Datasheet | Axial | 62 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839062635RCAP FILM 62PF 10% 630VDC AXIAL |
6,373 | - |
|
Datasheet | Axial | 62 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
