ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDTC04680YA00KT00CAP FILM 6.8UF 10% 40VAC 6054 |
3,709 | - |
|
Datasheet | 6054 (153137 Metric) | 6.8 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.287" (7.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
BFC233410564CAP FILM 0.56UF 10% 400VDC RAD |
4,258 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | 275V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
F861FB334J310Z.330UF 310V |
8,163 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.669" (17.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKPF3Y44706F00MSSDMKP 4F 4.7 F 230 VAC 15X26X31.5 |
2,040 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

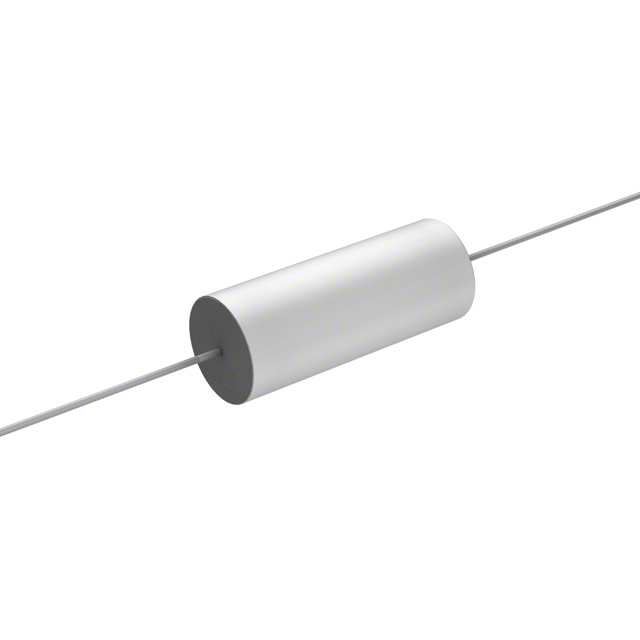

WMF2P15K-FCAP FILM 0.15UF 10% 250VDC AXIAL |
7,714 | - |
|
Datasheet | Axial | 0.15 µF | ±10% | - | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.374" Dia x 0.937" L (9.50mm x 23.80mm) | - | PC Pins | - | General Purpose | - | - |
|
167105K63C-FCAP FILM 1UF 10% 63VDC RADIAL |
6,451 | - |
|
Datasheet | Radial | 1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
ECW-H16223HVBCAP FILM 0.022UF 3% 1.6KVDC RAD |
7,112 | - |
|
Datasheet | Radial | 0.022 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.374" W (28.00mm x 9.50mm) | 0.906" (23.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
BFC238331153CAP FILM 0.015UF 5% 1KVDC RADIAL |
6,208 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
F161WP823K050VCAP FILM SMD PET |
7,706 | - |
|
Datasheet | Nonstandard SMD | 0.082 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
BFC241631504CAP FILM 0.15UF 5% 63VDC RADIAL |
9,905 | - |
|
Datasheet | Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC241731004CAP FILM 0.1UF 5% 160VDC RADIAL |
8,408 | - |
|
Datasheet | Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC241739103CAP FILM 0.091UF 5% 160VDC RAD |
2,324 | - |
|
Datasheet | Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC241834703CAP FILM 0.047UF 5% 250VDC RAD |
8,396 | - |
|
Datasheet | Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC241933003CAP FILM 0.03UF 5% 400VDC RADIAL |
9,008 | - |
|
Datasheet | Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC242032003CAP FILM 0.02UF 5% 630VDC RADIAL |
9,853 | - |
|
Datasheet | Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | Long Life |
|
QAK2E474KTPCAP FILM 0.47UF 10% 250VDC AXIAL |
4,243 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.472" W, 0.157" T x 0.906" L (12.00mm, 4.00mm x 23.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
F161WP184K063VCAP FILM SMD PET |
5,656 | - |
|
Datasheet | Nonstandard SMD | 0.18 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
QAP2G334KRPCAP FILM 0.33UF 10% 400VDC AXIAL |
5,549 | - |
|
Datasheet | Axial | 0.33 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.559" W, 0.299" T x 1.181" L (14.20mm, 7.60mm x 30.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKS4B044703G00JB00CAP FILM 4.7UF 5% 50VDC RADIAL |
8,780 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B044703G00JJ00CAP FILM 4.7UF 5% 50VDC RADIAL |
9,254 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
