ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R46KR447000M2KCAP FILM SAFETY/EMI SUPP RAD |
7,679 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R46KR4470JHM2KCAP FILM SAFETY/EMI SUPP RAD |
8,366 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1J031507C00KSC9FKP 1 0.15 F 630 VDC 13X24X41.5 |
8,794 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H147006BD2MSSDDC-LINK MKP 4 7.0 F 500 VDC 11X2 |
8,874 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F461FC225J250ZCAP FILM POLYPROP RAD |
7,990 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238310913CAP FILM 0.091UF 5% 400VDC RAD |
3,326 | - |
|
Datasheet | Radial | 0.091 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC238311913CAP FILM 0.091UF 5% 400VDC RAD |
6,663 | - |
|
Datasheet | Radial | 0.091 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC238361472CAP FILM 4700PF 5% 2KVDC RADIAL |
5,337 | - |
|
Datasheet | Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC247935154CAP FILM 0.15UF 5% 160VDC RADIAL |
4,694 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKS4F046806D00KSSDCAP FILM 6.8UF 10% 250VDC RADIAL |
5,461 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C051006B00MSSDCAP FILM 10UF 20% 63VDC RADIAL |
3,224 | - |
|
Datasheet | Radial | 10 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

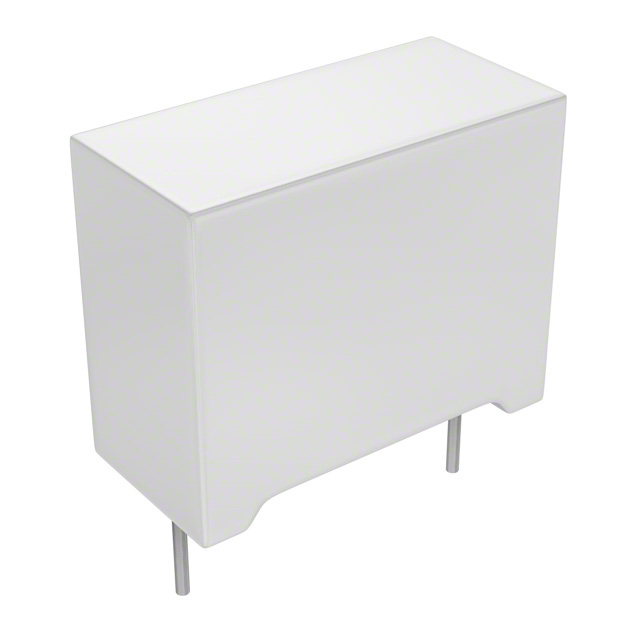

171684J160L-FCAP FILM 0.68UF 5% 160VDC RADIAL |
5,735 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
KP1836315125CAP FILM 0.015UF 1.25KVDC RAD |
9,005 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
BFC237538222CAP FILM 2200PF 5% 1.6KVDC RAD |
9,820 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
R49AW410040B1MCAP FILM SAFETY/EMI SUPP RAD |
4,086 | - |
|
Datasheet | Radial | 1 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.433" W (41.50mm x 11.00mm) | 0.870" (22.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F872FC224K480ZCAP FILM POLYPROP RAD X1 |
4,969 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC241641304CAP FILM 0.13UF 2% 63VDC RADIAL |
2,589 | - |
|
Datasheet | Radial | 0.13 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
BFC241747503CAP FILM 0.075UF 2% 160VDC RAD |
4,037 | - |
|
Datasheet | Radial | 0.075 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
BFC241748203CAP FILM 0.082UF 2% 160VDC RAD |
2,420 | - |
|
Datasheet | Radial | 0.082 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
BFC241942703CAP FILM 0.027UF 2% 400VDC RAD |
5,991 | - |
|
Datasheet | Radial | 0.027 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
