ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385456063JII2B0CAP FILM 0.56UF 5% 630VDC RADIAL |
7,987 | - |
|
Datasheet | Radial | 0.56 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385E4181AJKI2B0CAP FILM 0.18UF 5% 1.6KVDC RAD |
7,247 | - |
|
Datasheet | Radial | 0.18 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 26 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
335MPW400KCAP FILM 3.3UF 10% 400VDC AXIAL |
2,276 | - |
|
Datasheet | Axial | 3.3 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.945" Dia x 1.850" L (24.00mm x 47.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
|
BFC237510273CAP FILM 0.027UF 5% 630VDC RAD |
3,641 | - |
|
Datasheet | Radial | 0.027 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237513133CAP FILM 0.013UF 3.5% 630VDC RAD |
9,375 | - |
|
Datasheet | Radial | 0.013 µF | ±3.5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237514273CAP FILM 0.027UF 5% 630VDC RAD |
9,954 | - |
|
Datasheet | Radial | 0.027 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237520153CAP FILM 0.015UF 5% 1KVDC RADIAL |
3,645 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237524153CAP FILM 0.015UF 5% 1KVDC RADIAL |
2,363 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC247942104CAP FILM 0.1UF 5% 250VDC RADIAL |
6,880 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247944104CAP FILM 0.1UF 5% 250VDC RADIAL |
9,311 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
EFDKA55J106D122LHCAP EFDKA 550VDC 10UF J 2LEADS |
7,915 | - |
|
Datasheet | Radial | 10 µF | ±5% | - | 550V | Polypropylene (PP), Metallized | 10.5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.331" (33.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

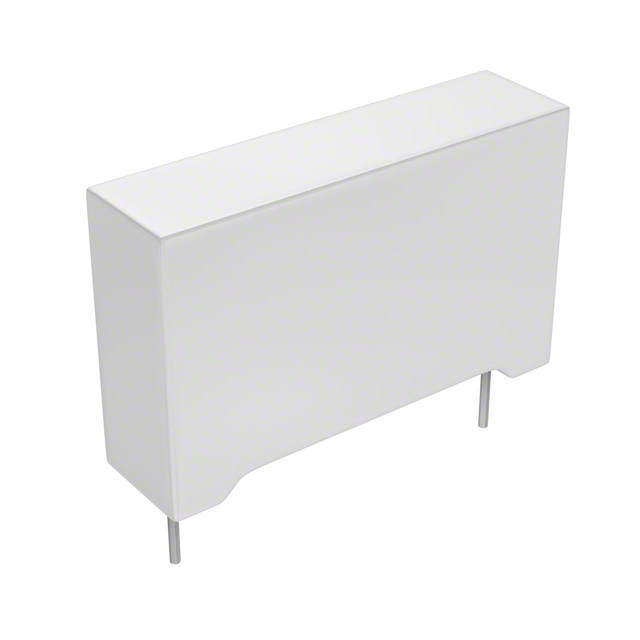

171474J250M-FCAP FILM 0.47UF 5% 250VDC RADIAL |
9,645 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 90V | 250V | Polypropylene (PP), Metallized | 35 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237528822CAP FILM 8200PF 5% 1KVDC RADIAL |
6,479 | - |
|
Datasheet | Radial | 8200 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1845315105CAP FILM 0.015UF 10% 1KVDC AXIAL |
9,460 | - |
|
Datasheet | Axial | 0.015 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.433" Dia x 1.142" L (11.00mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
A50MT4220AA60KCAP FILM AXL |
9,863 | - |
|
Datasheet | Axial | 2.2 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591" Dia x 1.299" L (15.00mm x 33.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
F461FN155K630ZCAP FILM POLYPROP RAD |
2,938 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
QAK2E474JTPCAP FILM 0.47UF 5% 250VDC AXIAL |
7,099 | - |
|
Datasheet | Axial | 0.47 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.472" W, 0.217" T x 0.984" L (12.00mm, 5.50mm x 25.00mm) | - | PC Pins | - | General Purpose | - | - |
|
B32674D8225J000CAP FILM 2.2UF 5% 875VDC RADIAL |
8,683 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 875V | Polypropylene (PP), Metallized | 10.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
942C8P15KCAP FILM 0.15UF 10% 850VDC AXIAL |
4,117 | - |
|
Datasheet | Axial | 0.15 µF | ±10% | 360V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.610" Dia x 1.339" L (15.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
.JPG "224PPB630K")
|
224PPB630KCAP FILM 0.22UF 10% 630VDC RAD |
8,536 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for Film Capacitors?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
