ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP4H161209FD4KSSDDC-LINK MKP 4 120.0 F 500 VDC 35 |
4,404 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H161209FD4KSC9DC-LINK MKP 4 120.0 F 500 VDC 35 |
5,881 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4C061807H00JSSDCAP FILM 180UF 5% 63VDC RADIAL |
6,194 | - |
|
Datasheet | Radial | 180 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C061807L00JSSDCAP FILM 180UF 5% 63VDC RADIAL |
3,327 | - |
|
Datasheet | Radial | 180 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
DCP4I061209JD4MSSDDC-LINK MKP 4 120.0 F 600 VDC 45 |
4,054 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I061209JD4KSSDDC-LINK MKP 4 120.0 F 600 VDC 45 |
8,288 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1847C665235Y5MKP 65F 10% 230VAC PITCH 52,5 |
3,277 | - |
|
Datasheet | Radial - 4 Leads | 65 µF | ±10% | 230V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
MKP1848675454Y5CAP FILM 75UF 5% 450VDC RADIAL |
5,524 | - |
|
Datasheet | Radial - 4 Leads | 75 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
MKS4F061509JD4MSSDCAP FILM 150UF 250VDC RAD 4 LEAD |
7,791 | - |
|
Datasheet | Radial - 4 Leads | 150 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4F061509JD4MSC9CAP FILM 150UF 250VDC RAD 4 LEAD |
4,380 | - |
|
Datasheet | Radial - 4 Leads | 150 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
UNL8W15K-FCAP FILM 15UF 10% 800VDC RADIAL |
4,531 | - |
|
Datasheet | Radial, Can | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.378" Dia (35.00mm) | 2.134" (54.20mm) | PC Pins | 0.500" (12.70mm) | - | - | Low ESR |
|
|
DCP4L061159JD4MSSDDC-LINK MKP 4 115.0 F 800 VDC 45 |
7,513 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4C061807L00JSC9CAP FILM 180UF 5% 63VDC RADIAL |
5,972 | - |
|
Datasheet | Radial | 180 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C061807H00JSC9CAP FILM 180UF 5% 63VDC RADIAL |
5,322 | - |
|
Datasheet | Radial | 180 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1848680454Y2CAP FILM 80UF 5% 450VDC RADIAL |
6,693 | - |
|
Datasheet | Radial | 80 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
105K400CS6-FACAP FILM 1UF 10% 400VDC 14DIP |
7,503 | - |
|
Datasheet | 14-DIP | 1 µF | ±10% | - | 400V | Polymer, Metallized | 8 mOhms | -55°C ~ 125°C | Through Hole | 0.882" L x 0.700" W (22.40mm x 17.80mm) | 0.319" (8.10mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
105K400CS6G-FACAP FILM 1UF 10% 400VDC 14SMD |
7,434 | - |
|
Datasheet | 14-SMD, Gull Wing | 1 µF | ±10% | - | 400V | Polymer, Metallized | 8 mOhms | -55°C ~ 125°C | Surface Mount | 0.882" L x 0.700" W (22.40mm x 17.80mm) | 0.319" (8.10mm) | Gull Wing | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

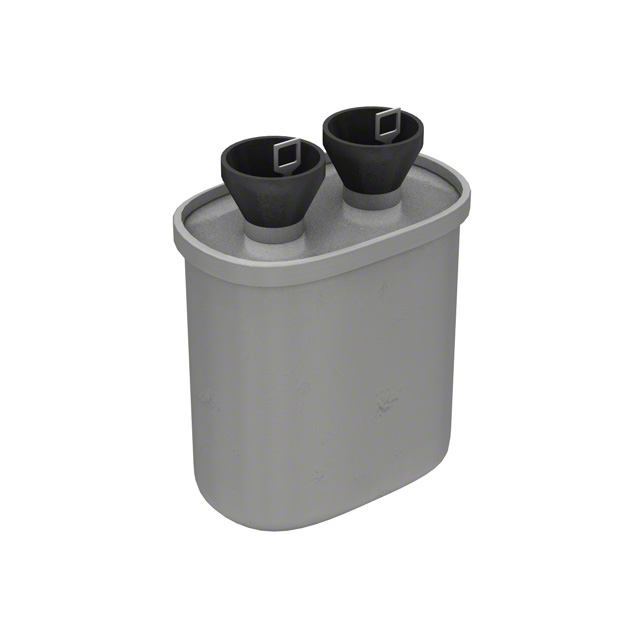

OTBH205KNPIR-FCAP FILM 2UF 10% 1.5KVDC RADIAL |
4,663 | - |
|
Datasheet | Radial, Can | 2 µF | ±10% | 660V | 1500V (1.5kV) | Paper, Metallized | - | -55°C ~ 85°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.250" (82.55mm) | Solder Lug | 0.810" (20.57mm) | DC Link, DC Filtering; Motor Run | - | - |
|
|
MKP385651025JYI2T0CAP FILM 51UF 5% 250VDC RADIAL |
7,012 | - |
|
Datasheet | Radial | 51 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385651025JYM2T0CAP FILM 51UF 5% 250VDC RADIAL |
3,071 | - |
|
Datasheet | Radial | 51 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
