ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32652A0223J006FILM CAP MKP BOX 22NF 5% 1000VDC |
7,387 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins - Long Leads | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT; Snubber | AEC-Q200 | Low ESL |
|
|
B32021A3472M026FILM CAP Y2 MKP 4.7NF 20% 300VAC |
7,095 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins - Long Leads | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32522N6334J000CAP FILM 0.33UF 5% 450VDC RADIAL |
2,950 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 200V | 450V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32922D3334K000CAP FILM 0.33UF 10% 630VDC RAD |
88,819 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32021A3222M289CAP FILM 2200PF 20% 1.5KVDC RAD |
32,827 | - |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32642B0153JCAP FILM 0.015UF 5% 1KVDC RADIAL |
13,951 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32652A2102J000CAP FILM 1000PF 5% 2KVDC RADIAL |
4,018 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32621A6273K289CAP FILM 0.027UF 10% 630VDC RAD |
2,540 | - |
|
Datasheet | Radial | 0.027 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

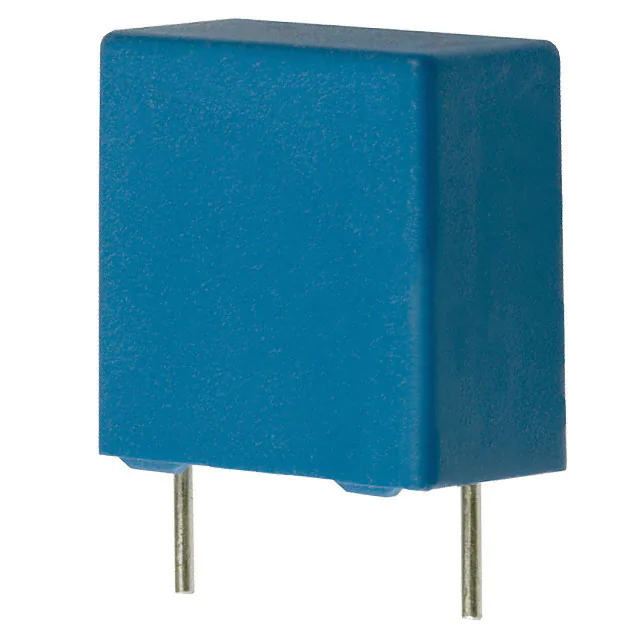

B32932A3104M000CAP FILM 0.1UF 20% 305VAC RADIAL |
1,489 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32021A3103M000CAP FILM 10000PF 20% 1.5KVDC RAD |
132,002 | - |
|
Datasheet | Radial | 10000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
