ELECTRONIC COMPONENTS
Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32923C3474K189CAP FILM 0.47UF 20% 630VDC RAD |
1,960 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32522C3334J000CAP FILM 0.33UF 5% 250VDC RADIAL |
7,721 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32652A0333K000CAP FILM 0.033UF 10% 1KVDC RAD |
5,045 | - |
|
Datasheet | Radial | 0.033 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
B32620A6103J000CAP FILM 10000PF 5% 630VDC RAD |
3,356 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
B32651A7222J000CAP FILM 2200PF 5% 1.25KVDC RAD |
3,030 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
B32672L4684J000CAP FILM 0.68UF 5% 450VDC RADIAL |
1,065 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 200V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
B32922C3473K189CAP FILM 0.047UF 10% 630VDC RAD |
25,164 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32520C0684J289CAP FILM 0.68UF 5% 63VDC RADIAL |
6,613 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|

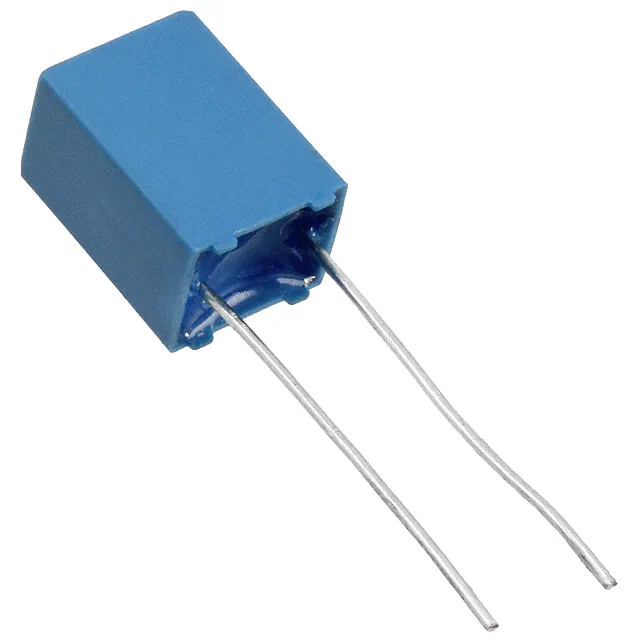

B32529C1684J000CAP FILM 0.68UF 5% 100VDC RADIAL |
4,161 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.295" L x 0.236" W (7.50mm x 6.00mm) | 0.413" (10.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32922P3474K000FILM CAP MKP X2 - 125C, 0.47UF 1 |
3,645 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
