ELECTRONIC COMPONENTS
IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS50R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
1,312 | - |
|
Datasheet | - | Module | Tray | Active | - | - | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | - | No | -40°C ~ 175°C | Chassis Mount | Module |
|
FS50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
3,923 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
FP50R06W2E3BOMA1IGBT MODULE 600V 65A 175W |
1,088 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 65 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FP35R12W2T4BOMA1IGBT MOD 1200V 54A 215W |
1,720 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 54 A | 215 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP50R12W2T7B11BOMA1LOW POWER EASY |
3,742 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
|
FS75R12W2T4B11BOMA1IGBT MOD 1200V 107A 375W |
1,650 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP25R12KT3BPSA1LOW POWER ECONO |
3,859 | - |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 40 A | 105 W | 2.15V @ 15V, 25A | 5 mA | 1.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
FP75R12KT4B15BOSA1IGBT MOD 1200V 75A 385W |
1,301 | - |
|
Datasheet | EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

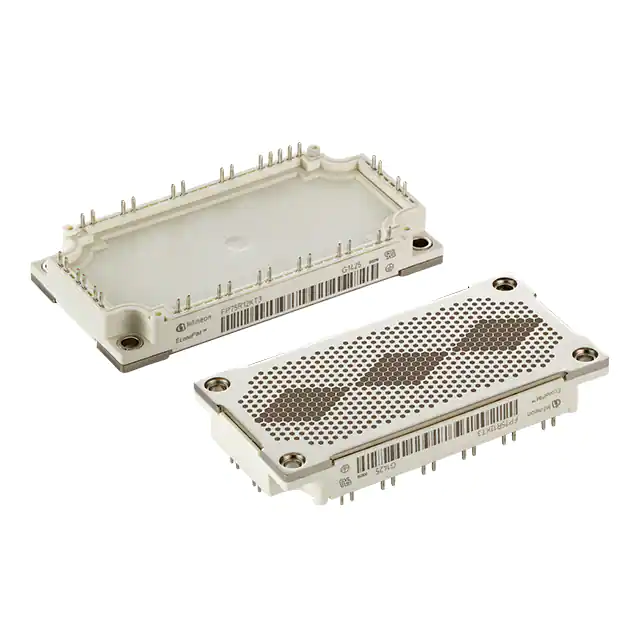

FP75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
1,748 | - |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS75R12N2T7B15BPSA2LOW POWER ECONO |
3,956 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
