IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP15R06W1E3BOMA1IGBT MODULE 600V 22A 81W |
4,728 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 22 A | 81 W | 2V @ 15V, 15A | 1 mA | 830 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP15R12W1T7B3BOMA1IGBT MODULE LOW POWER EASY |
2,998 | - |
|
Datasheet | TrenchStop™ | Module | Bulk | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | - | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
.jpg "FS25R12W1T7BOMA1")
|
FS25R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
3,437 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FP10R12W1T4B3BOMA1IGBT MOD 1200V 20A 105W |
3,595 | - |
|
Datasheet | EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 20 A | 105 W | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS25R12W1T4B11BOMA1IGBT MOD 1200V 45A 205W |
4,561 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 45 A | 205 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP30R06W1E3BOMA1IGBT MODULE 600V 37A 115W |
2,481 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP15R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
7,025 | - |
|
Datasheet | TrenchStop™ | Module | Bulk | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | - | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|
DDB6U50N16W1RPBPSA1LOW POWER EASY AG-EASY1B-711 |
2,900 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 6.2 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
DDB6U50N16W1RPB11BPSA1LOW POWER EASY |
1,021 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 6.2 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|

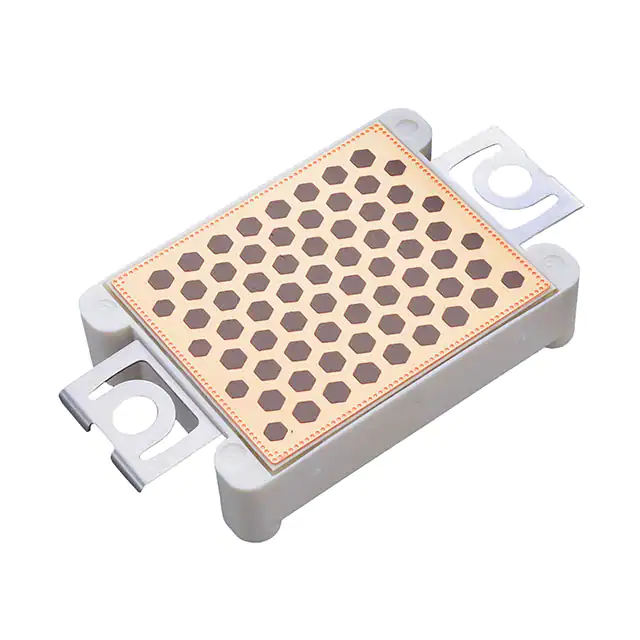

FS25R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
3,975 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
