IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 |
7,245 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 |
8,510 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F |
2,877 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 |
2,359 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 |
8,855 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

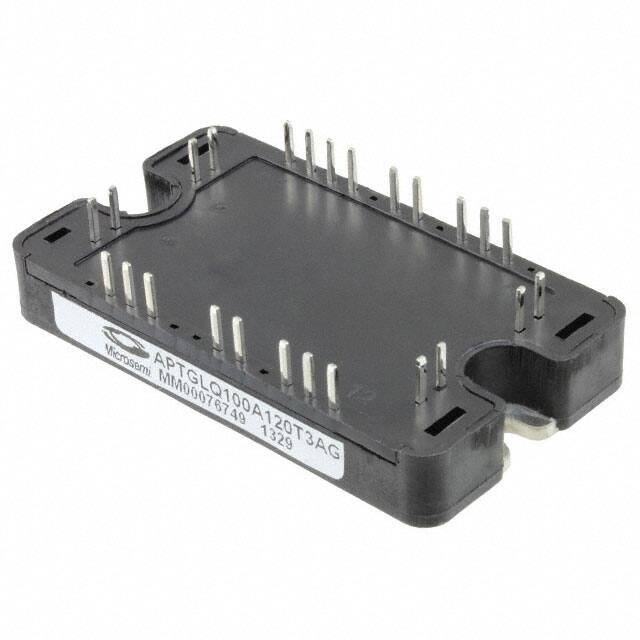

APTGLQ100A120T3AGIGBT MODULE 1200V 185A 650W SP3 |
3,197 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 185 A | 650 W | 2.4V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGT100SK170TGIGBT MODULE 1700V 150A 560W SP4 |
8,669 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Single | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT50A170TGIGBT MODULE 1700V 75A 312W SP4 |
6,284 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT200DU60TGIGBT MODULE 600V 290A 625W SP4 |
8,810 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150DH60TGIGBT MODULE 600V 225A 480W SP4 |
5,701 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
