IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGTQ150TA65TPGIGBT MODULE 650V 150A 365W SP6P |
8,376 | - |
|
Datasheet | - | Module | Bulk | Active | - | Three Phase Inverter | 650 V | 150 A | 365 W | 2.2V @ 15V, 150A | 150 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|

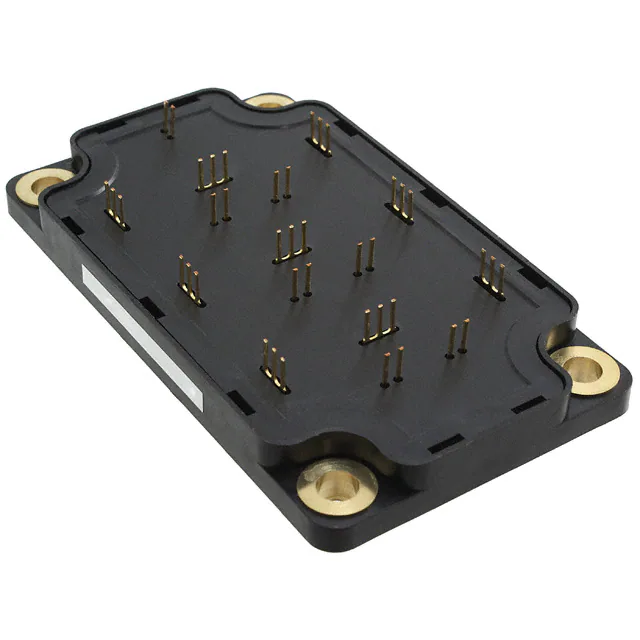

APTGL120TA120TPGIGBT MODULE 1200V 140A 517W SP6P |
5,384 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGL120TDU120TPGIGBT MODULE 1200V 140A 517W SP6P |
7,795 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT100TA120TPGIGBT MODULE 1200V 140A 480W SP6P |
4,821 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|
|
APTGT300A120GIGBT MODULE 1200V 420A 1380W SP6 |
8,196 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300DU120GIGBT MODULE 1200V 420A 1380W SP6 |
8,419 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGL700U120D4GIGBT MODULE 1200V 910A 3000W D4 |
7,507 | - |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 910 A | 3000 W | 2.2V @ 15V, 600A | 4 mA | 37.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
APTGT600U120D4GIGBT MODULE 1200V 900A 2500W D4 |
5,551 | - |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 900 A | 2500 W | 2.1V @ 15V, 600A | 5 mA | 40 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|

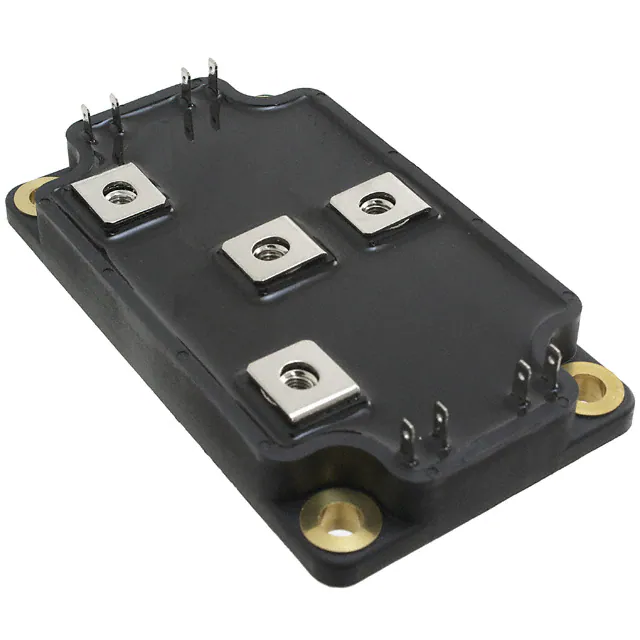

APTGT300TL60GIGBT MODULE 600V 400A 935W SP6 |
9,411 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 400 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT150H120GIGBT MODULE 1200V 220A 690W SP6 |
3,023 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 350 µA | 10.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
