ELECTRONIC COMPONENTS
IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM900DU-24NFIGBT MOD 1200V 900A 2550W |
7,381 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 900 A | 2550 W | 2.5V @ 15V, 900A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM900DUC-24NFIGBT MOD 1200V 900A 5900W |
9,189 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 900 A | 5900 W | 2.5V @ 15V, 900A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM1000E3U-34NFIGBT MOD 1700V 1000A 3900W |
7,626 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM1400DUC-24NFIGBT MOD 1200V 1400A 8900W |
5,276 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 1400 A | 8900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|

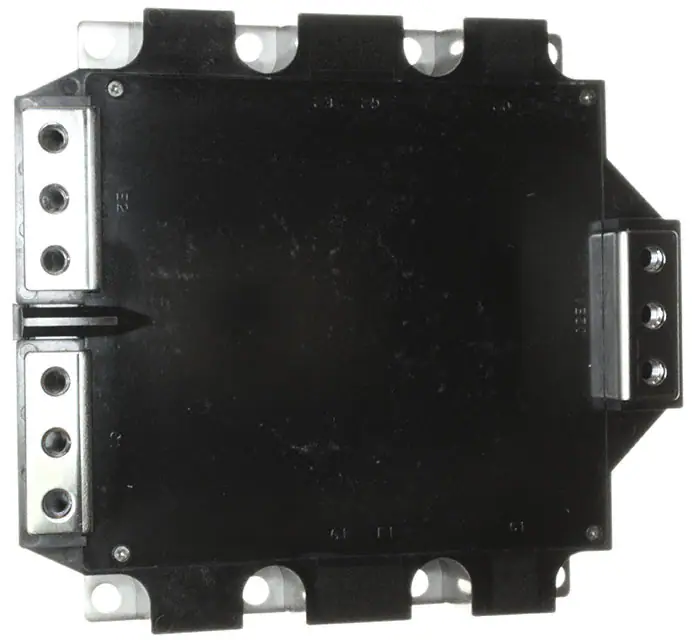

CM1000DU-34NFIGBT MOD 1700V 1000A 3900W |
7,019 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

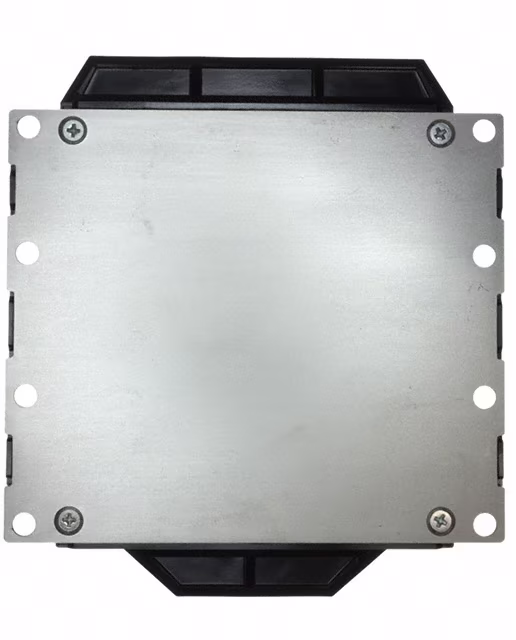

CM1400DU-24NFIGBT MOD 1200V 1400A 3900W |
9,967 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM450DX-24AIGBT MOD 1200V 450A 2840W |
2,780 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 450 A | 2840 W | 2.6V @ 15V, 450A | 1 mA | 68 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

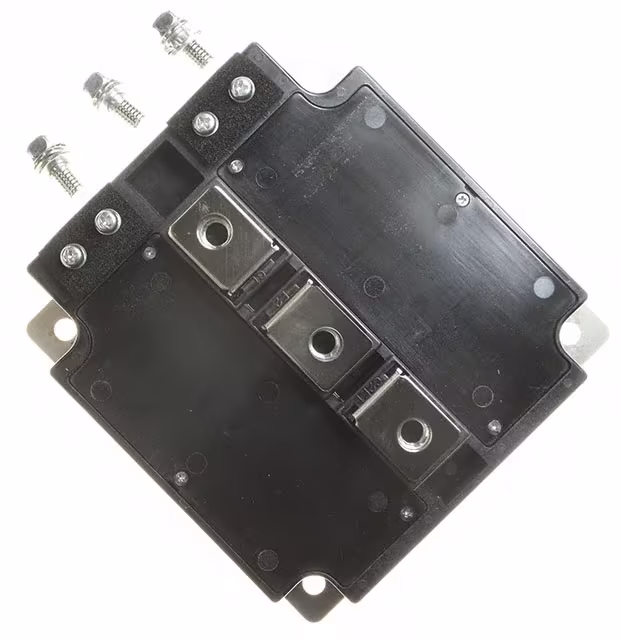

CM600DU-24NFIGBT MOD 1200V 600A 2080W |
6,000 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 2080 W | 2.65V @ 15V, 600A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

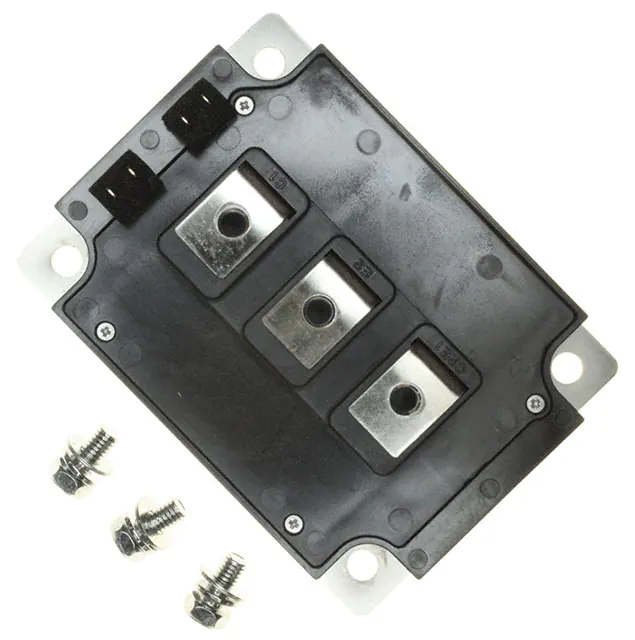

CM600DY-12NFIGBT MOD 600V 600A 1130W |
3,660 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.2V @ 15V, 600A | 1 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

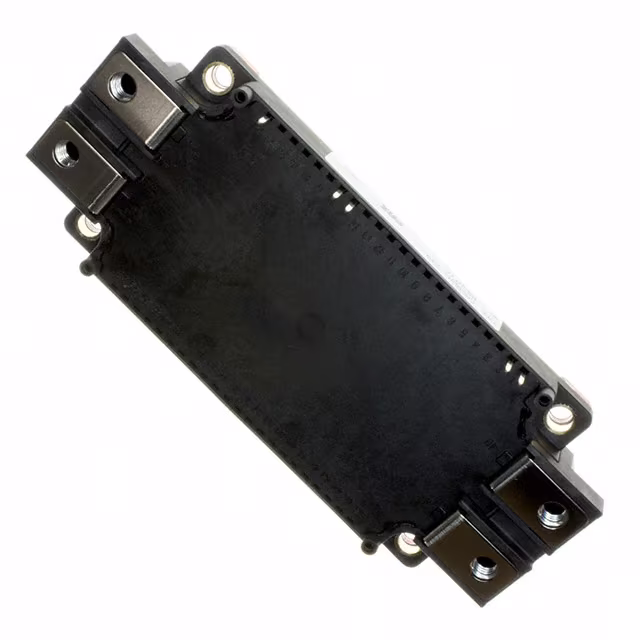

CM600HX-24AIGBT MOD 1200V 600A 3785W |
6,299 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 600 A | 3785 W | 2.6V @ 15V, 600A | 1 mA | 100 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
