ELECTRONIC COMPONENTS
IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

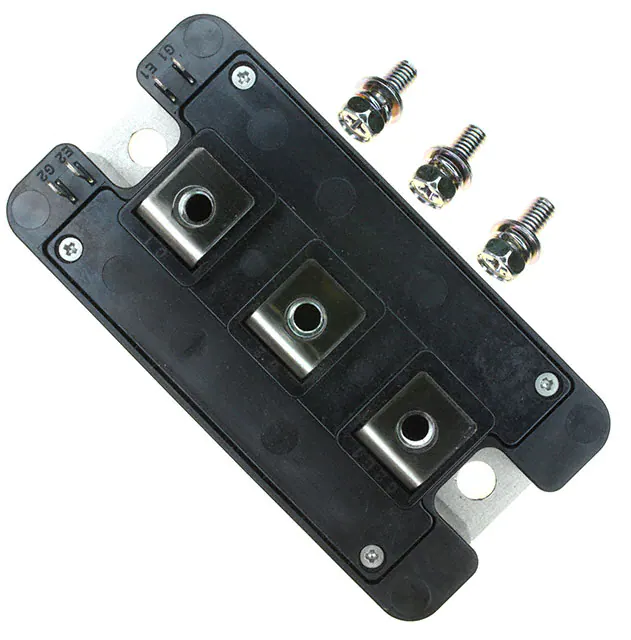

CM150DY-12NFIGBT MOD 600V 150A 590W |
3,300 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 150 A | 590 W | 2.2V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM100DUS-12FIGBT MOD 600V 100A 350W |
9,418 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 100 A | 350 W | 2.7V @ 15V, 100A | 1 mA | 27 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM100TX-24TIGBT MOD 1200V 100A 565W |
3,189 | - |
|
Datasheet | T | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 100 A | 565 W | 1.95V @ 15V, 100A | 1 mA | 20.5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM150DU-12HIGBT MOD 600V 150A 600W |
8,278 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 150 A | 600 W | 3V @ 15V, 150A | 1 mA | 13.2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM100DY-24NFIGBT MOD 1200V 100A 650W |
4,875 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 100 A | 650 W | 2.5V @ 15V, 100A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM150DY-24AIGBT MOD 1200V 150A 960W |
5,559 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 150 A | 960 W | 3V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM150DX-24AIGBT MOD 1200V 150A 960W |
7,138 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 960 W | 2.6V @ 15V, 150A | 1 mA | 23 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

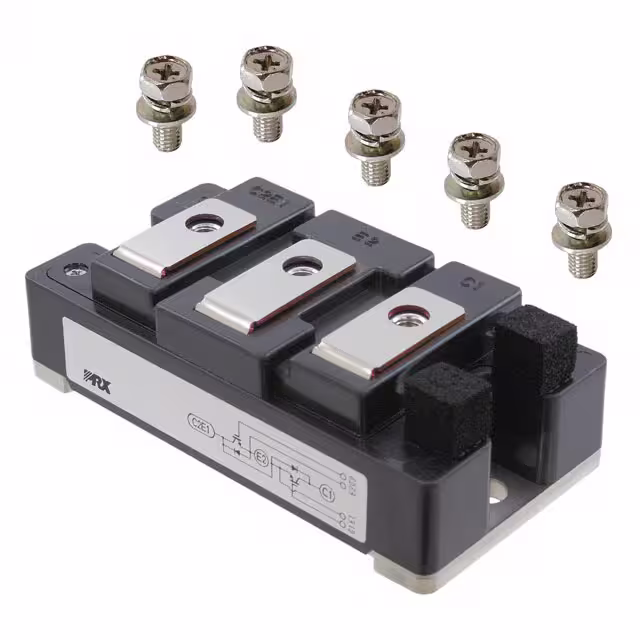

CM150DUS-12FIGBT MOD 600V 150A 520W |
6,731 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 150 A | 520 W | 2.7V @ 15V, 150A | 1 mA | 41 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200EXS-24SIGBT MOD 1200V 200A 1500W |
9,390 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
CM50BU-24HIGBT MOD 1200V 50A 400W |
9,184 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Full Bridge Inverter | 1200 V | 50 A | 400 W | 3.7V @ 15V, 50A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
