IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

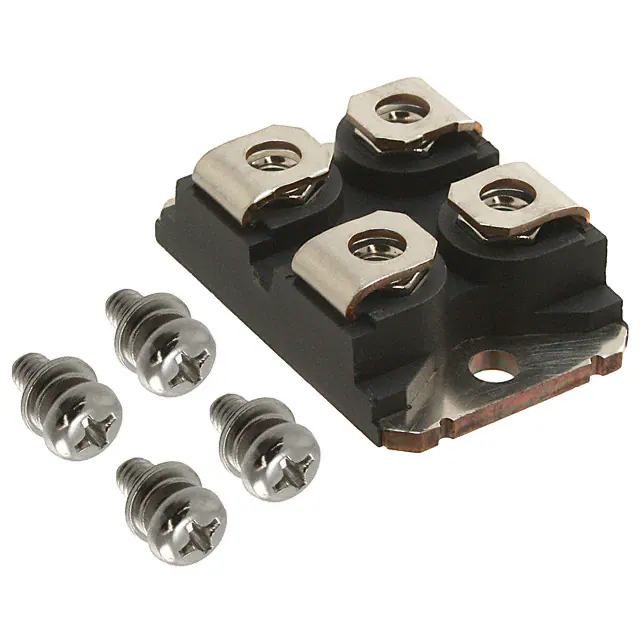

IXGN200N60B3IGBT MOD 600V 300A 830W SOT227B |
702 | - |
|
Datasheet | GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 300 A | 830 W | 1.5V @ 15V, 100A | 50 µA | 26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXGN72N60C3H1IGBT MOD 600V 78A 360W SOT227B |
300 | - |
|
Datasheet | GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 78 A | 360 W | 2.5V @ 15V, 50A | 250 µA | 4.78 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXYN100N65A3IGBT MOD 650V 170A 600W SOT227B |
288 | - |
|
Datasheet | XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 650 V | 170 A | 600 W | 1.8V @ 15V, 70A | 25 µA | - | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
IXYN110N120C4IGBT 1200V 110A GEN4 XPT SOT227B |
296 | - |
|
Datasheet | XPT™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 220 A | 830 W | 2.4V @ 15V, 110A | 50 µA | 5.42 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
|
IXXN200N60B3IGBT MOD 600V 280A 940W SOT227B |
2,373 | - |
|
Datasheet | XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 280 A | 940 W | 1.7V @ 15V, 100A | 50 µA | 9.97 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
IXA60IF1200NAIGBT MOD 1200V 88A 290W SOT227B |
1,739 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 1200 V | 88 A | 290 W | 2.1V @ 15V, 50A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis, Stud Mount | SOT-227B |
.jpg "MIXA20WB1200TED")
|
MIXA20WB1200TEDIGBT MODULE 1200V 28A 100W E2 |
1,349 | - |
|
Datasheet | - | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 28 A | 100 W | 2.1V @ 15V, 16A | 1.5 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
MIXA61H1200EDIGBT MODULE 1200V 85A 290W E2 |
1,196 | - |
|
Datasheet | - | E2 | Box | Active | PT | Full Bridge Inverter | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
MIXA40WB1200TEDIGBT MODULE 1200V 60A 195W E2 |
1,122 | - |
|
Datasheet | - | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 60 A | 195 W | 2.1V @ 15V, 35A | 2.1 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|

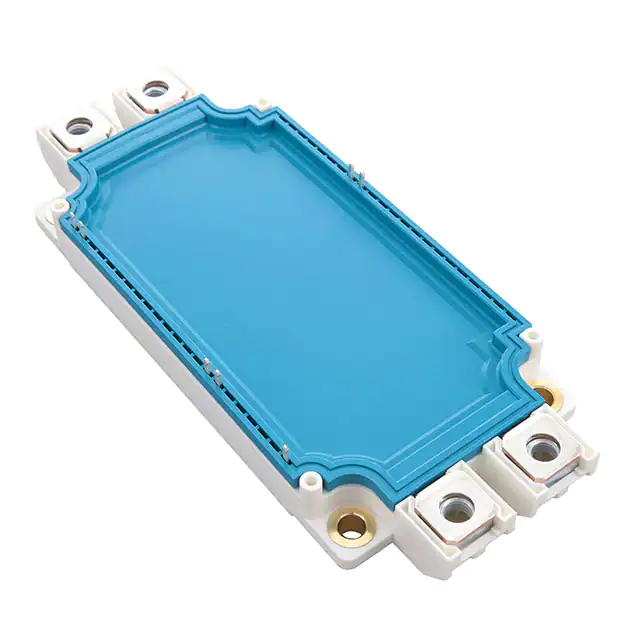

MIXA300PF1200TSFIGBT MOD 1200V 465A 1500W |
1,522 | - |
|
Datasheet | - | Module | Box | Active | PT | Half Bridge | 1200 V | 465 A | 1500 W | 2.1V @ 15V, 300A | 300 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
