ELECTRONIC COMPONENTS
Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4514EUK+TIC SWITCH SPST-NOX1 20OHM SOT23 |
21,979 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX20337AEFT+TIC SWITCH SPST-NOX1 330MOHM 6WLP |
1,390 | - |
|
Datasheet | Beyond-the-Rails™ | Tape & Reel (TR) | Active | SPST - NO | 2:1 | 1 | 330mOhm | 3mOhm | 1.6V ~ 5.5V | - | 32.5ms, 8.8ms (Typ) | 220MHz | - | 19pF | 100nA | -55dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-FC2QFN (1.25x1.75) |
|
MAX4594EXK+TIC SWITCH SPST-NOX1 10OHM SC70-5 |
3,549 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
MAX4516CUK+TIC SWITCH SPST-NOX1 20OHM SOT23 |
6,331 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | ±1V ~ 6V | 100ns, 75ns | - | 10pC | 9pF, 9pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

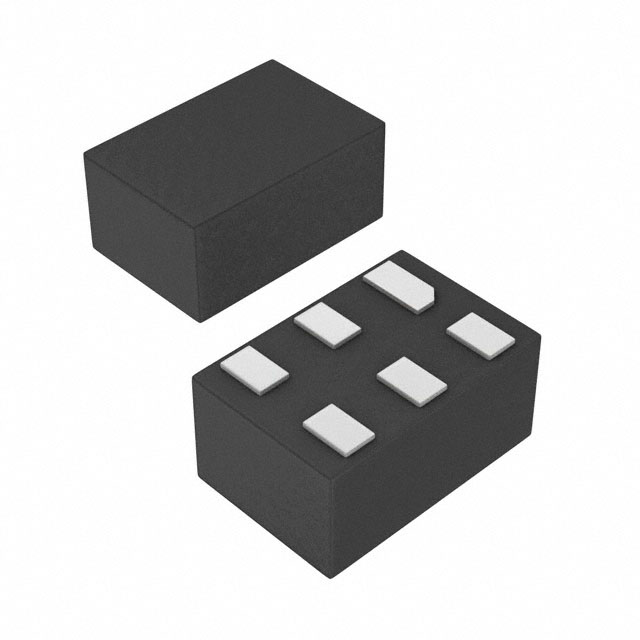

MAX4599ELT+TIC SWITCH SPDT X 1 60OHM 6UDFN |
5,163 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 200mOhm | 2V ~ 5.5V | - | 30ns, 25ns | 200MHz | 3pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
MAX4992EVB+TIC SWITCH SPDTX2 500MOHM 10UTQFN |
6,191 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 500mOhm | 3mOhm | 1.8V ~ 5.5V | - | 150µs, 2µs | - | - | 45pF | 100nA | -110dB @ 20kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|
MAX4599EXT+TIC SWITCH SPDT X 1 60OHM SC70-6 |
3,742 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 200mOhm | 2V ~ 5.5V | - | 30ns, 25ns | 200MHz | 3pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
MAX4515EUK+TIC SWITCH SPST-NCX1 20OHM SOT23 |
8,369 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX4544EUT+TIC SWITCH SPDT X 1 60OHM SOT6 |
17,750 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
MAX4564EKA+TIC SWITCH SPDT X 1 60OHM SOT23-8 |
6,730 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 60Ohm | 750mOhm | 1.8V ~ 12V | ±1V ~ 6V | 60ns, 40ns | 450MHz | 3pC | 6pF, 8pF | 1nA | -72dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
