ELECTRONIC COMPONENTS
Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HC4052PW/AUJIC SWITCH SP4TX2 150OHM 16TSSOP |
1,939 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 150Ohm | 6Ohm | 2V ~ 10V | ±1.5V ~ 5V | 58ns, 48ns | 180MHz | - | 3.5pF | 2µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
74HC4053D/AUJIC SWITCH SPDT X 3 120OHM 16SO |
3,162 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 120Ohm | 6Ohm | 2V ~ 10V | ±1V ~ 5V | 31ns, 29ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
74HC4066PW/AUJIC SW SPST-NOX4 95OHM 14TSSOP |
4,992 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 95Ohm | 3Ohm | 2V ~ 10V | - | 30ns, 20ns | 200MHz | - | 3.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
NX3L4053HR-Q100XIC SWITCH SPDTX3 800MOHM 16HXQFN |
2,475 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 800mOhm | 120mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HXQFN (3x3) |
|
|
HEF4051BT/AUJIC MUX 8:1 155OHM 16SO |
4,398 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
HEF4052BT/AUJIC SWITCH SP4T X 2 155OHM 16SO |
1,566 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
HEF4053BT/AUJIC SWITCH SPDT X 3 155OHM 16SO |
1,639 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
HEC4066BT-Q100JIC SWITCH SPST-NCX4 155OHM 14SO |
4,298 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 90MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
NX3L1G66GW-Q100HIC SW SPST-NOX1 750MOHM 5TSSOP |
4,875 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 750mOhm | - | 1.4V ~ 4.3V | - | 23ns, 8ns | 60MHz | 6pC | 35pF | 10nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|

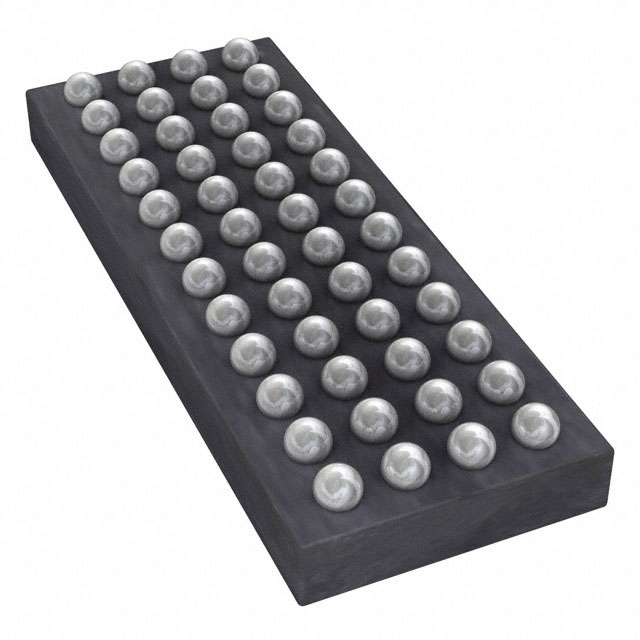

CBTV24DD12ETYIC SWITCH SPDT X 12 9OHM 48TFBGA |
2,902 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 12 | 9Ohm | 400mOhm | 1.62V ~ 3.63V | - | - | 7.4GHz | - | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (3x8) |
