ELECTRONIC COMPONENTS
Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1745G-T-Z MSOP10 LF T&RIC SWITCH SPDT X 2 4OHM 10MSOP |
3,412 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 17ns, 6ns | - | 7pC | 20pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
AS1751S-TIC SW SPST-NOX4 900MOHM 14TSSOP |
2,976 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
AS1746-BTDRIC SWITCH SPDTX2 550MOHM 10TDFN |
2,486 | - |
|
Datasheet | - | Tray | Active | SPDT | 2:1 | 2 | 550mOhm | 20mOhm | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 200pC | 84pF, 37pF | 10nA | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
AS1745G-Z MSOP10 LF TUBIC SWITCH SPDT X 2 4OHM 10MSOP |
1,108 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 17ns, 6ns | - | 7pC | 20pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|

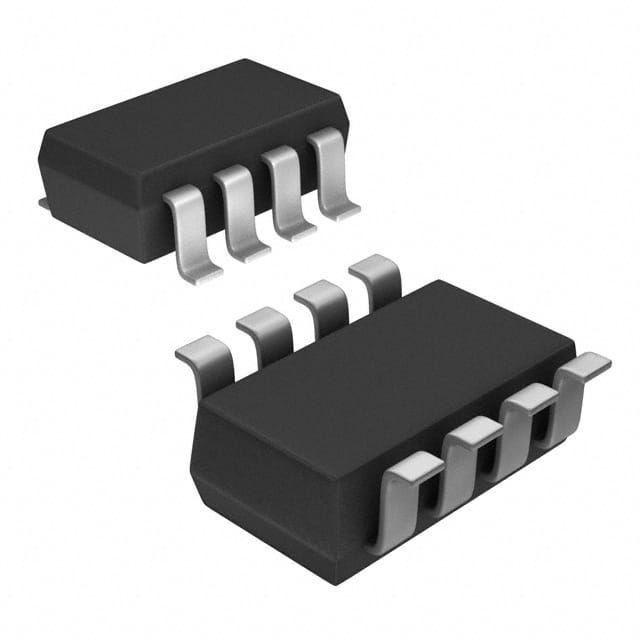

AS1741H-TIC SW SPST-NOX2 800MOHM SOT23-8 |
3,058 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | 20mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | 130MHz | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
AS1747-BTDT-1KIC SWITCH SPDTX2 850MOHM 10TDFN |
1,357 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 850mOhm | 30mOhm | 1.8V ~ 5.5V | - | 400ns, 200ns | 31MHz | 2pC | 63pF | 10nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
AS1746-BTDTIC SWITCH SPDTX2 550MOHM 10TDFN |
4,296 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm | 20mOhm | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 200pC | 84pF, 37pF | 10nA | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
AS1751V-TIC SW SPST-NOX4 900MOHM 16TQFN |
3,438 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|

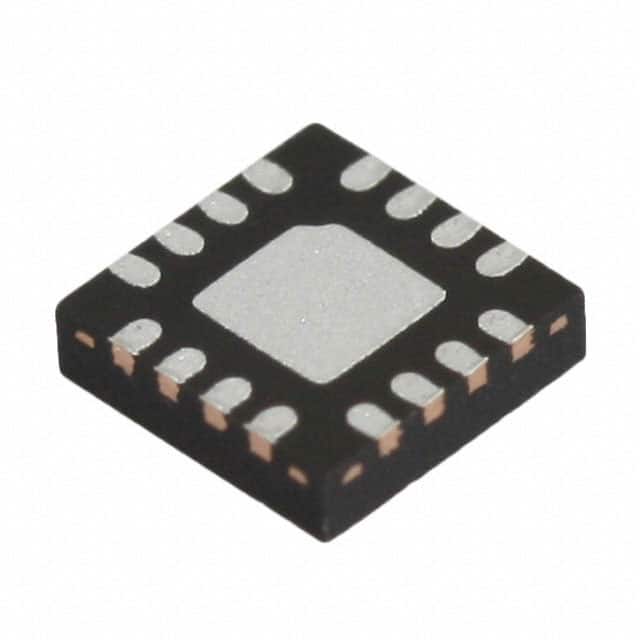

AS1753V-TIC SW SPST-NO/NCX4 900MOHM 16QFN |
4,877 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|

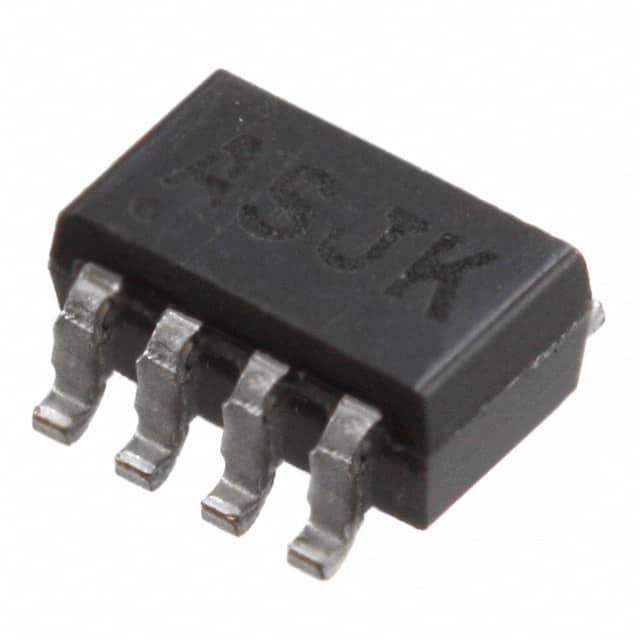

AS1742H-TIC SW SPST-NCX2 800MOHM SOT23-8 |
2,209 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 800mOhm | 20mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | 130MHz | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
